XCMG / XGA3250D5WC
XCMG equipment / Product profile
Dump Truck
XGA3250D5WC

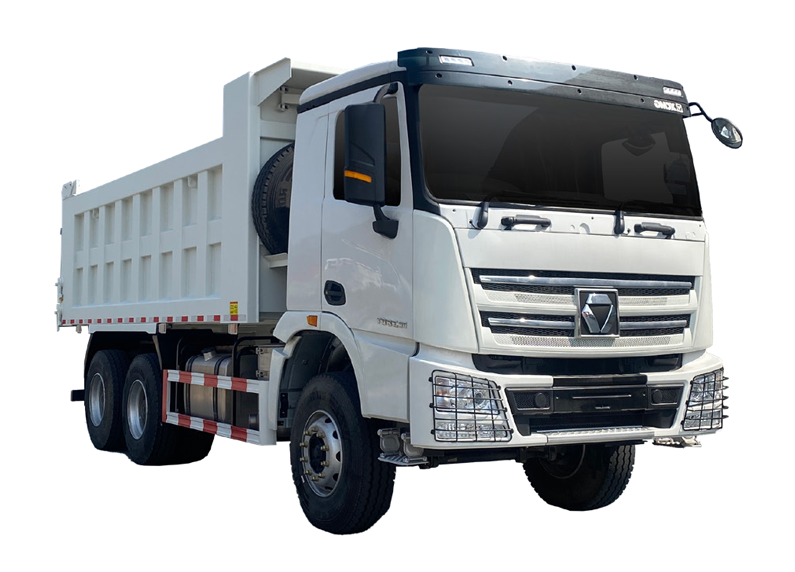

XCMG XGA3250D5WC — Dump Truck. Review published parameters and request the configuration for your destination market from XEMACH.
Drive Type6×4
Kerb Mass16400 kg
GVW46400 kg
Max. Speed74 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XGA3250D5WC — Dump Truck. Review published parameters and request the configuration for your destination market from XEMACH.
Drive Type: 6×4 · Kerb Mass: 16400 kg · GVW: 46400 kg · Max. Speed: 74 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
Domestic leading special SDEC engine of powerul Engineering Edition adopted. Standard 4-valve confgured, with higher intake and exhaust efciency, more intense combustion, powerul, reliable and durable through rounds of optimization and calibration. Adopting straight suspension system, the engine can run stably and reliably. The suspension cushion adopting composite structure can have the serice life prolonged to 100,000km. Through several rounds of optimization, the decoupling rate of powerrain mounting system is over 95% and the shock isolation rate of system is over 80%, on the leading level of China.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Drive Type | 6×4 | — |
| Kerb Mass | 16400 | kg |
| GVW | 46400 | kg |
| Max. Speed | 74 | km/h |
| Min. Turning Diameter | 18 | m |
| Grade Ability | ≥30% | — |
| Approach Angle | 27° | — |
| Departure Angle | 36° | — |
| Cargo size | 5800×2300×1500 | mm |
| Left/Right Driving | LHD | — |
| AC | Standard | — |
| Person Allowed in | 2 | — |
| Transmission Model | 12JSDX200T-B | — |
| PTO | QH50 | — |
| Front Axle Model | 7.5T | — |
| Rear Axle Model | 16T | — |
| Main Reducer Ratio | 5.262 | — |
| Rim | 8.5V-20 | 9.75×22.5 | — |
Oil Capacity ＋
| Item | Value | Unit |
|---|---|---|
| Fuel Tank | 400 | L |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Dimension | 8690×2550×3480 | mm |
| Wheelbase | 3800+1400 | mm |
| Min. Clearance | 285 | mm |
| Tire | 12.00R20 | 13R22.5 | — |
Cab standard ＋
| Item | Value | Unit |
|---|---|---|
| Cabin Model | XG1-H | — |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine Model | SC10E380Q5 | — |
| Emission Standard | EUR V | — |
| Displacement | 10.42 | L |
| Output Power | 279 | KW |
| Max Torque Speed | 1800 | km/h |
