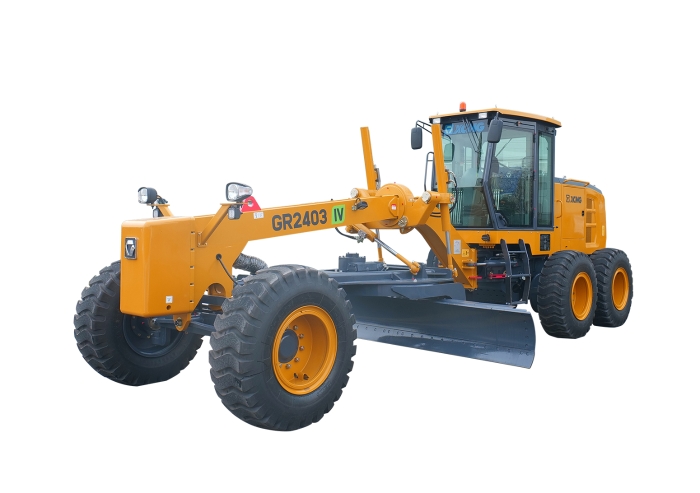

XCMG GR2403 — Motor Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Total weight (standard): 17000 kg · Rated power/speed: 178/2000 kW/rpm · Length × chord height: 3965×610 mm · Overall dimension (standard): 8970×2625×3420 mm
Existing XEMACH configuration retained. Do not combine its values with another market version.
GR2403 grader is mainly used for large-area ground leveling, trenching, slope scraping, bulldozing, ripping, snow removal and other works on the high-ways, airports, farmlands etc., and it can also be used under heavy-duty conditions. With the advantages of compact structure, high reliability, comfortable operation and convenient maintenance, the whole machine becomes a necessary construction machine for urban and rural road construction,water conservancy construction and farmland improvement.
Values and units are preserved as published. Missing speed or version information is not inferred.
| Item | Value | Unit |
|---|---|---|
| Engine model | QSB6.7 | — |
| Rated power/speed | 178/2000 | kW/rpm |
| Overall dimension (standard) | 8970×2625×3420 | mm |
| Total weight (standard) | 17000 | kg |
| Tire specification | 17.5-25 | — |
| Ground clearance (front axle) | 430 | mm |
| Tread | 2156 | mm |
| Item | Value | Unit |
|---|---|---|
| Space of front and rear axles | 6219 | mm |
| Space of middle and rear wheels | 1538 | mm |
| Forward speed | 5, 8, 11, 19, 23, 38 | km/h |
| Reverse speed | 5, 11, 23 | km/h |
| Tractive effort (f=0.75) | ≥87 | kN |
| Maximum gradeability | ≥25 | % |
| Inflation pressure of tires | 260 | kPa |
| Item | Value | Unit |
|---|---|---|
| Working system pressure | 20 | MPa |
| Transmission pressure | 1.3—1.8 | MPa |
| Maximum steering angle of front wheels | ±48 | ° |
| Maximum inclination angle of front wheels | ±17 | ° |
| Maximum swing angle of front axle | ±15 | ° |
| Maximum swing angle of balance box | Front 15, rear 15 | ° |
| Maximum steering angle of frame | ±27 | ° |
| Minimum turning radius | 7.3 | m |
| Maximum lifting height | 400 | mm |
| Maximum shoveling depth | 500 | mm |
| Item | Value | Unit |
|---|---|---|
| Maximum lateral inclination angle | 90 | ° |
| Cutting angle | 28—70 | ° |
| Slewing angle | 360 | ° |
| Length × chord height | 3965×610 | mm |
| Item | Value | Unit |
|---|---|---|
| Coolant | 50 | L |
| Fuel tank | 280 | L |
| Engine oil | 24 | L |
| Transmission oil | 38 | L |
| Balance box oil | 73×2 | L |
| Drive axle oil | 25 | L |
| Hydraulic oil | 110 | L |
