XCMG / GR165
XCMG equipment / Product profile

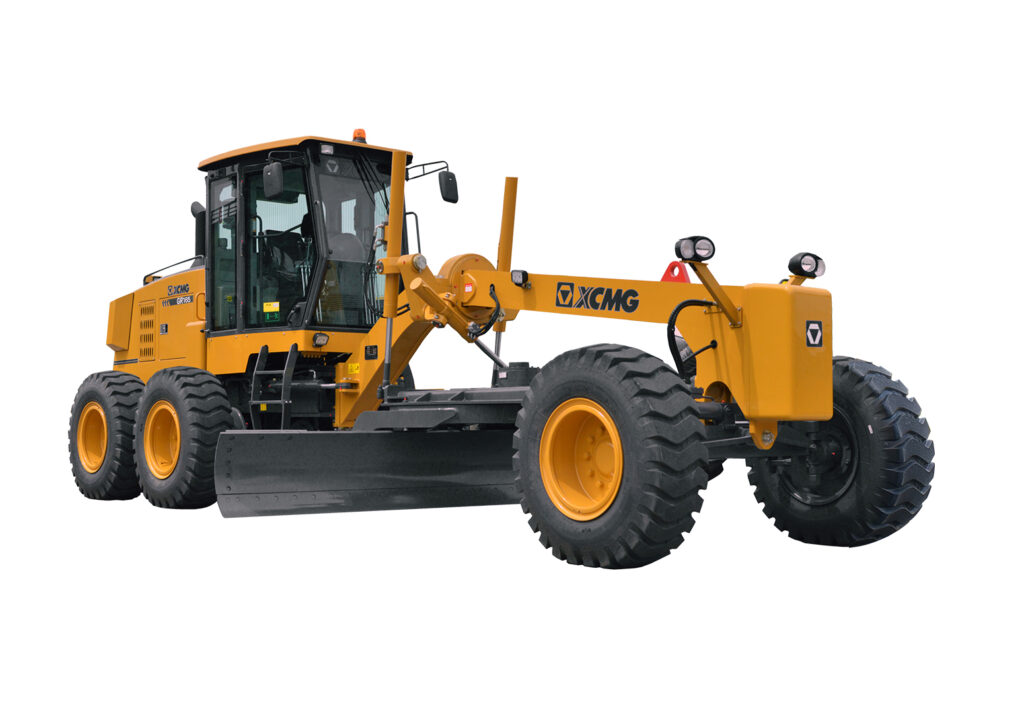

Motor Grader
GR165
XCMG GR165 — Motor Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Total weight (standard)15000 kg
Rated power/speed132 / 2200 kW/rpm
Length × chord height3660 × 610 mm
Overall dimension (standard)8900 × 2625 × 3420 mm
Existing XEMACH configuration retained. Do not combine its values with another market version.
XEMACH ↗ · Source checked:
01
Overview
Published reference specifications
XCMG GR165 — Motor Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Total weight (standard): 15000 kg · Rated power/speed: 132 / 2200 kW/rpm · Length × chord height: 3660 × 610 mm · Overall dimension (standard): 8900 × 2625 × 3420 mm
Existing XEMACH configuration retained. Do not combine its values with another market version.
Original manufacturer description (English)
GR165 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc., also can be used inheavy duty working conditions. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conservancy construction, farmland improvement, etc.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Basic Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Engine model | 6BTA5.9-C180-II | — |
| Rated power/speed | 132 / 2200 | kW/rpm |
| Overall dimension (standard) | 8900 × 2625 × 3420 | mm |
| Total weight (standard) | 15000 | kg |
| Tire specification | 17.5-25 | — |
| Ground clearance (front axle) | 430 | mm |
| Tread | 2156 | mm |
Performance Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Space of front and rear axles | 6219 | mm |
| Space of middle and rear wheels | 1538 | mm |
| Forward speed | 5, 8, 11, 19, 23, 38 | km/h |
| Reverse speed | 5, 11, 23 | km/h |
| Tractive effort (f=0.75) | ≥77 | kN |
| Maximum gradeability | ≥25 | % |
| Inflation pressure of tires | 260 | kPa |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Working system pressure | 16 | MPa |
| Transmission pressure | 1.3-1.8 | MPa |
| Maximum steering angle of front wheels | ±50 | ° |
| Maximum inclination angle of front wheels | ±17 | ° |
| Maximum swing angle of front axle | ±15 | ° |
| Maximum swing angle of balance box | front 15, rear 15 | ° |
| Maximum steering angle of frame | ±27 | ° |
| Minimum turning radius | 7.3 | m |
| Maximum lifting height | 450 | mm |
| Maximum shoveling depth | 500 | mm |
Blade Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Maximum lateral inclination angle | 90 | ° |
| Cutting angle | 28-70 | ° |
| Slewing angle | 360 | ° |
| Length × chord height | 3660 × 610 | mm |
Oil Filling Amount ＋
| Item | Value | Unit |
|---|---|---|
| Coolant | 50 | L |
| Fuel tank | 280 | L |
| Engine oil | 24 | L |
| Transmission oil | 38 | L |
| Balance box oil | 46 | L |
| Drive axle oil | 28 | L |
| Hydraulic oil | 110 | L |
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Motor Grader_GR165_Cummins_China Stage Ⅱ_EN_20251226
File size: 20.1 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
