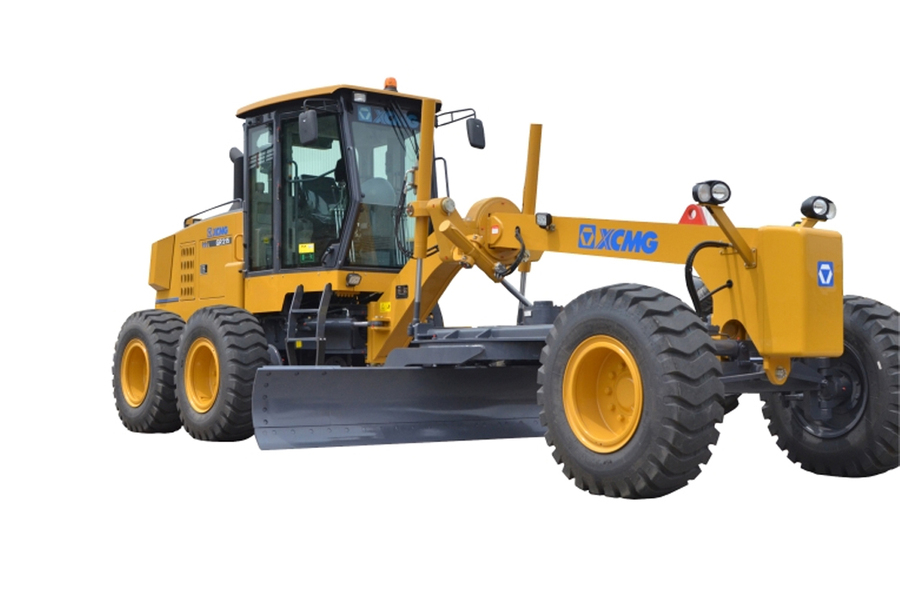

XCMG GR215 — Motor Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Existing XEMACH configuration retained. Do not combine its values with another market version.
XEMACH ↗ · Source checked:
XCMG GR215 — Motor Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Total weight (standard): 16500 kg · Rated power/speed: 160 / 2200 kW/rpm · Length × chord height: 3965 × 610 mm · Overall dimension (standard): 8970 × 2625 × 3420 mm
Existing XEMACH configuration retained. Do not combine its values with another market version.
GR215 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as high-way, airports, farmlands etc., also can be used inheavy duty and mining areas. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conservancy construction,farmland improvement, etc.
Values and units are preserved as published. Missing speed or version information is not inferred.
| Item | Value | Unit |
|---|---|---|
| Engine model | 6CTA8.3-C215 | — |
| Rated power/speed | 160 / 2200 | kW/rpm |
| Overall dimension (standard) | 8970 × 2625 × 3420 | mm |
| Total weight (standard) | 16500 | kg |
| Tire specification | 17.5-25 | — |
| Ground clearance (front axle) | 430 | mm |
| Tread | 2156 | mm |
| Item | Value | Unit |
|---|---|---|
| Space of front and rear axles | 6219 | mm |
| Space of middle and rear wheels | 1538 | mm |
| Forward speed | 5, 8, 11, 19, 23, 38 | km/h |
| Reverse speed | 5, 11, 23 | km/h |
| Tractive effort (f=0.75) | ≥85 | kN |
| Maximum gradeability | ≥25 | % |
| Inflation pressure of tires | 260 | kPa |
| Item | Value | Unit |
|---|---|---|
| Working system pressure | 16 | MPa |
| Transmission pressure | 1.3-1.8 | MPa |
| Maximum steering angle of front wheels | ±50 | ° |
| Maximum inclination angle of front wheels | ±17 | ° |
| Maximum swing angle of front axle | ±15 | ° |
| Maximum swing angle of balance box | front 15, rear 15 | ° |
| Maximum steering angle of frame | ±27 | ° |
| Minimum turning radius | 7.3 | m |
| Maximum lifting height | 450 | mm |
| Maximum shoveling depth | 500 | mm |
| Item | Value | Unit |
|---|---|---|
| Maximum lateral inclination angle | 90 | ° |
| Cutting angle | 28-70 | ° |
| Slewing angle | 360 | ° |
| Length × chord height | 3965 × 610 | mm |
| Item | Value | Unit |
|---|---|---|
| Coolant | 50 | L |
| Fuel tank | 280 | L |
| Engine oil | 24 | L |
| Transmission oil | 38 | L |
| Balance box oil | 46 | L |
| Drive axle oil | 28 | L |
| Hydraulic oil | 110 | L |
