XCMG / XPE1215
XCMG equipment / Product profile

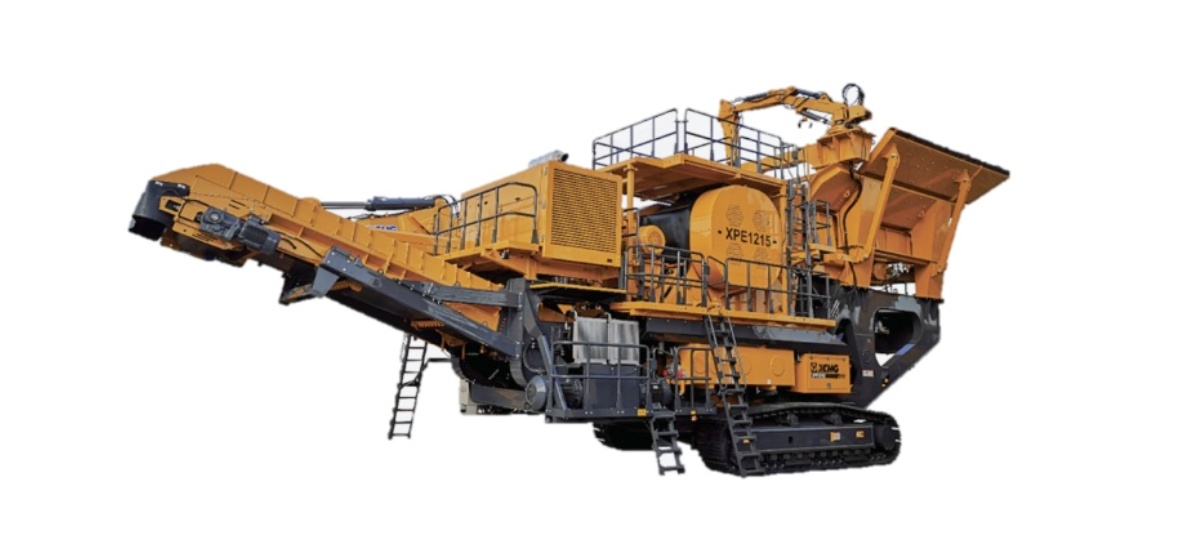

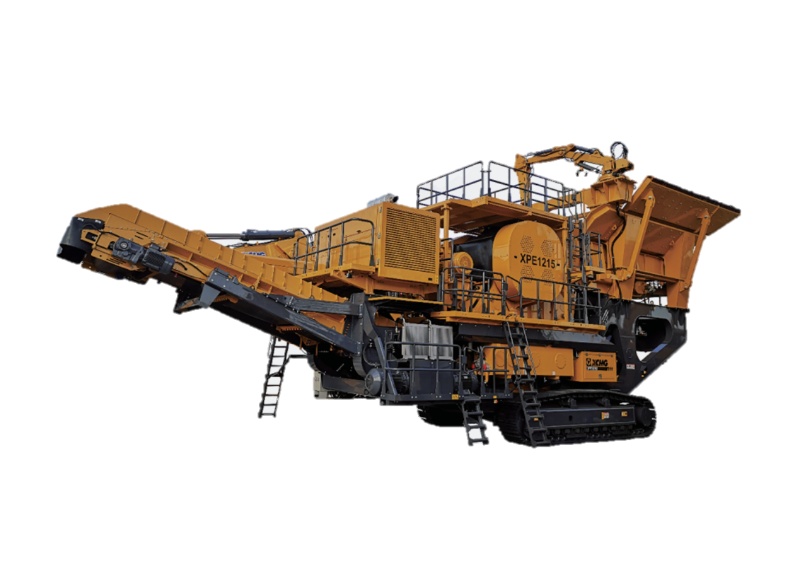

Movable Jaw Crushing Station
XPE1215
XCMG XPE1215 — Movable Jaw Crushing Station. Review published parameters and request the configuration for your destination market from XEMACH.
Handling capacity400～1000 t/h
Overall weight150700 kg
Working dimensions /L x W x H19918×6421×9506 mm
Travel speed1 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XPE1215 — Movable Jaw Crushing Station. Review published parameters and request the configuration for your destination market from XEMACH.
Handling capacity: 400～1000 t/h · Overall weight: 150700 kg · Working dimensions /L x W x H: 19918×6421×9506 mm · Travel speed: 1 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XPE1215 movable jaw crushing station is a kind of large-scale equipment specially developed to meet open-pit coarse crushing requirements. If it is coupled with a mobile belt conveyor, it can be composed into a “truckless material conveying system”. It has reliable performances and a pleasant appearance, and is equipped with a deep cavity type jaw crusher, graphic touchscreen interface and optimized engine power matching technology, and has reached advanced global standard. It is widely applied for coarse crushing of various ores and natural stones.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Overall weight | 150700 | kg |
| Handling capacity | 400～1000 | t/h |
| Travel speed | 1 | km/h |
| Gradeability | ≤12 | ° |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working dimensions /L x W x H | 19918×6421×9506 | mm |
| Transportation dimensions /L x W x H | Not published | mm |
| Min. ground clearance | Not published | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_XPE1215_Scania_EN_20260617
File size: 22.7 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
