XCMG / XPE0810E
XCMG equipment / Product profile

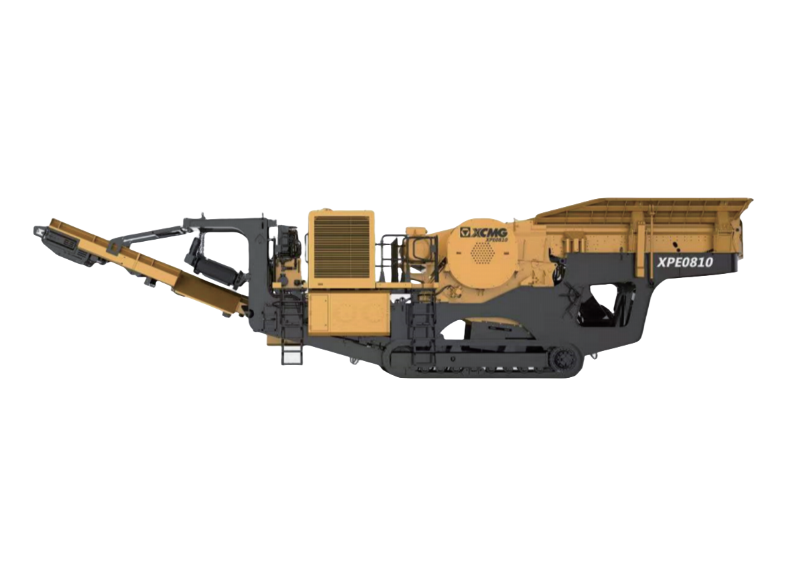

Movable Jaw Crushing Station
XPE0810E
XCMG XPE0810E — Movable Jaw Crushing Station. Review published parameters and request the configuration for your destination market from XEMACH.
Handling capacity140～300 t/h
Overall weight44000 kg
Working dimensions /L x W x H15280×4660×3820 mm
Transportation dimensions /L x W x H15650×2963×3645 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XPE0810E — Movable Jaw Crushing Station. Review published parameters and request the configuration for your destination market from XEMACH.
Handling capacity: 140～300 t/h · Overall weight: 44000 kg · Working dimensions /L x W x H: 15280×4660×3820 mm · Transportation dimensions /L x W x H: 15650×2963×3645 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XPE0810E movable jaw crushing station, as a primary breaking plant, applies to materials with different hardness, such as rocks, ores, construction waste, etc. Efficient and reliable breaker provides strong breaking force. External power drive mode are used early for XPE0810E among domestic movable jaw crushing stations at the same level. The fuel is saved and the operation cost is reduced. The whole machine can bring you outstanding breaking experience by virtue of professional design, lean manufacturing, ultrahigh reliability, and intelligent control system.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Overall weight | 44000 | kg |
| Handling capacity | 140～300 | t/h |
| Travel speed | 0.9/0.5 | km/h |
| Gradeability | 13 | ° |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working dimensions /L x W x H | 15280×4660×3820 | mm |
| Transportation dimensions /L x W x H | 15650×2963×3645 | mm |
| Min. ground clearance | 244 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_XPE0810E_Yuchai_EN_20251231
File size: 23.9 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
