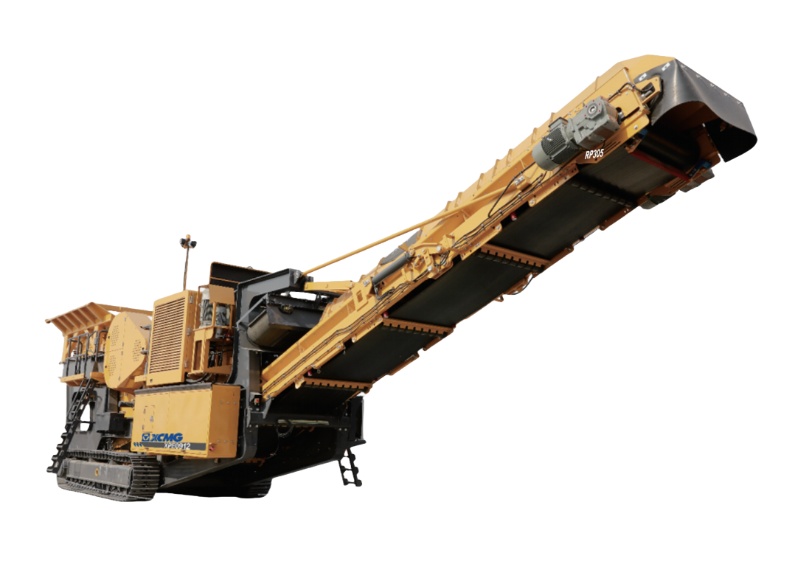

Movable Jaw Crushing Station
XPE0912
XCMG XPE0912 — Movable Jaw Crushing Station. Review published parameters and request the configuration for your destination market from XEMACH.
Handling capacity160～500 t/h
Overall weight70830 kg
Working dimensions /L x W x H15870×8263×4472 mm
Travel speed1 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XPE0912 — Movable Jaw Crushing Station. Review published parameters and request the configuration for your destination market from XEMACH.
Handling capacity: 160～500 t/h · Overall weight: 70830 kg · Working dimensions /L x W x H: 15870×8263×4472 mm · Travel speed: 1 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)

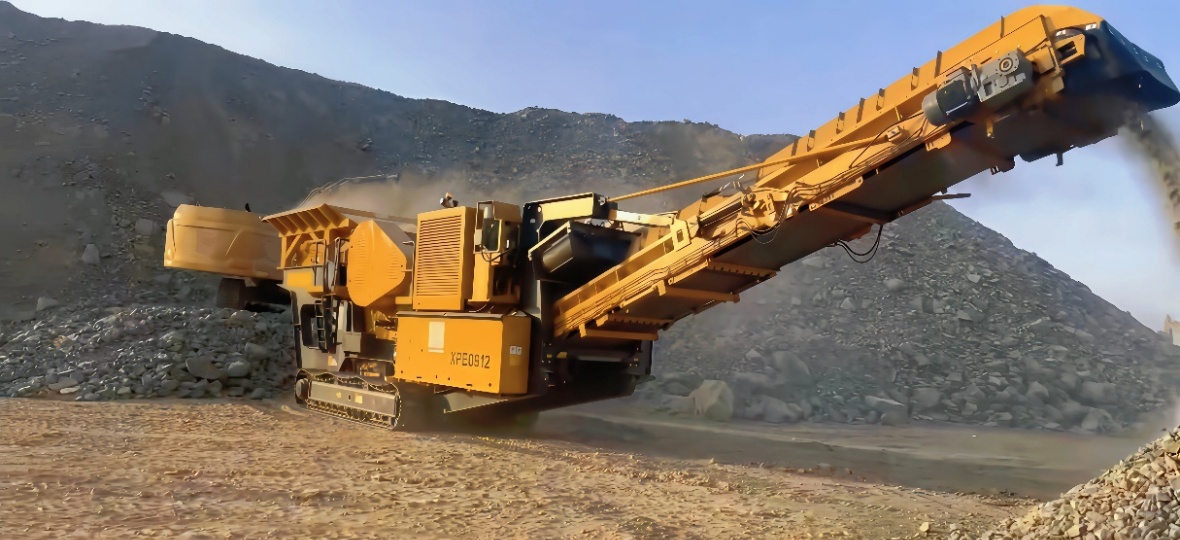

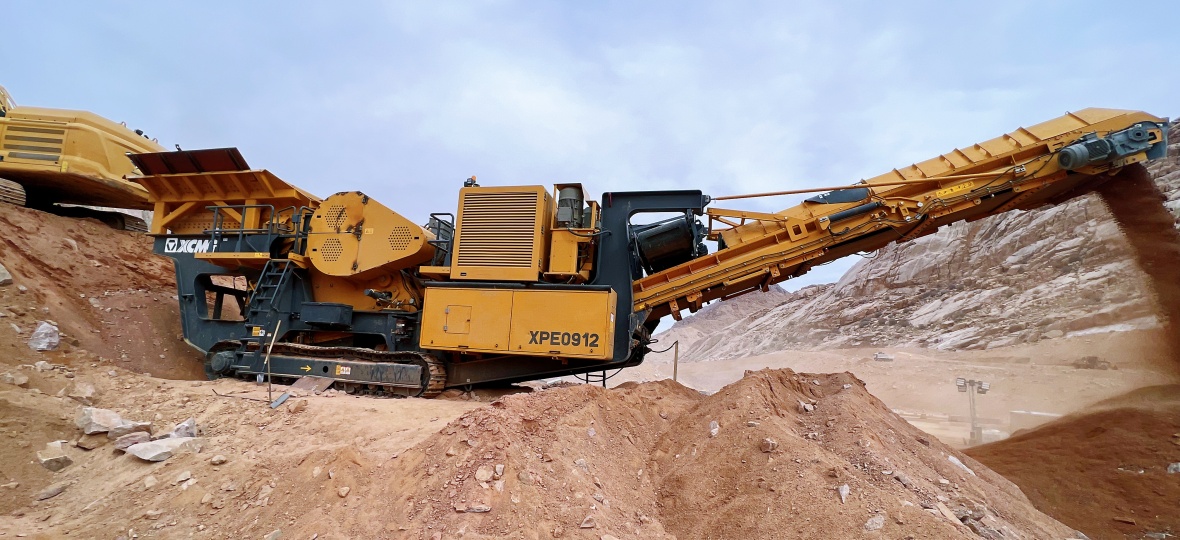

XPE0912 movable jaw crushing station has integrated functions of receiving, crushing and conveying materials, its technological process has been optimized in order to obtain better performances, such as crushing rocks, producing aggregates and crushing open pit mine. Different models of machines can be associated to form a powerful assembly line to make crushing operation and to complete more demanding processing work. It has reliable performances and a pleasant appearance, and is equipped with a deep cavity type jaw crusher, a touchscreen with graphic interface and optimized engine power matching technology, and has reached world advanced level. It is widely used for coarse crushing various ores and natural stones.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Overall weight | 70830 | kg |
| Handling capacity | 160～500 | t/h |
| Travel speed | 1 | km/h |
| Gradeability | 14 | ° |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working dimensions /L x W x H | 15870×8263×4472 | mm |
| Transportation dimensions /L x W x H | Not published | mm |
| Min. ground clearance | Not published | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_XPE0912_Scania_EN_20251231
File size: 23.8 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
