XCMG / XZ800F
XCMG equipment / Product profile
Horizontal Directional Drilling Rig
XZ800F

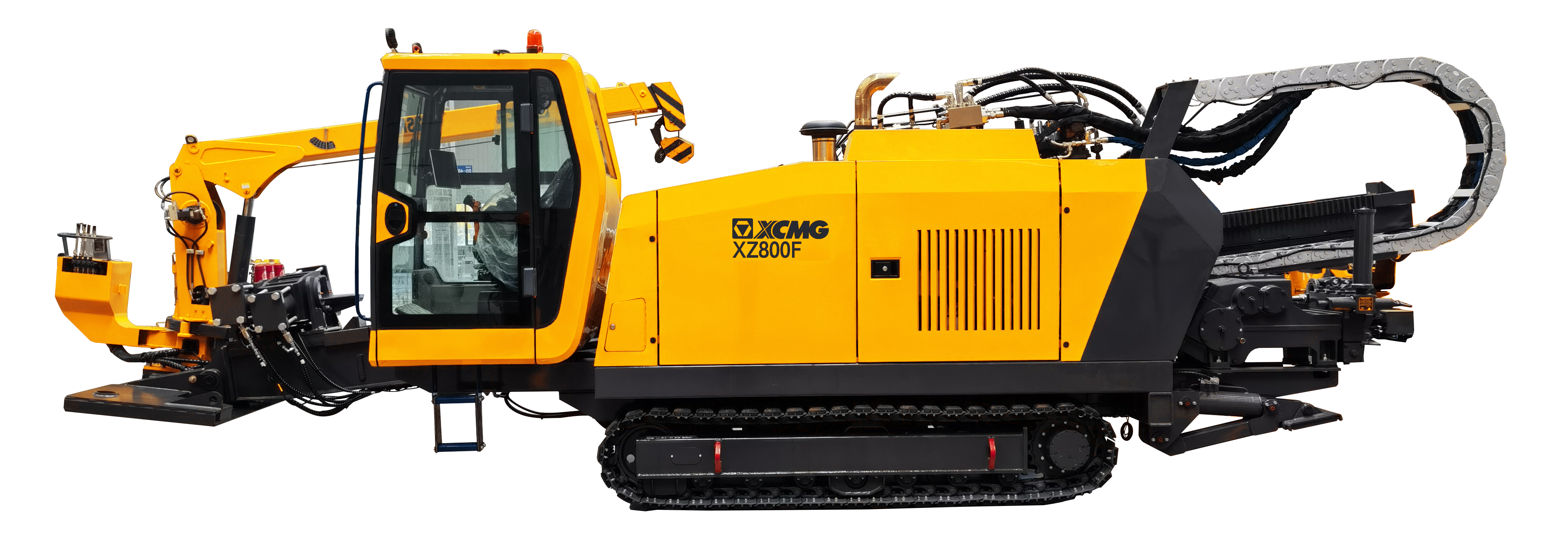

XCMG XZ800F — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diamete1200 mm
Power head Max. thrust-pull force800 kN
Rated power220 kW
EngineCummins /
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XZ800F — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diamete: 1200 mm · Power head Max. thrust-pull force: 800 kN · Rated power: 220 kW · Engine: Cummins /
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The medium-tonnage drilling rig can be used in municipal engineering, and can also be used to construct some oil and gas pipelines and in hard rock construction conditions.The medium-tonnage drilling rig is equipped with cab and auxiliary crane as standard.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | / |
| Rated power | 220 | kW |
| Power head Max. thrust-pull force | 800 | kN |
| Power head Max. thrust-pull speed | 55 | m/min |
| Power head Torque | 35000 | N·m |
| Power head Max. rotation speed | 120 | r/min |
Hydraulic system ＋
| Item | Value | Unit |
|---|---|---|
| Mud pump Max. flow | 600 | L/min |
| Mud pump Max. pressure | 10 | MPa |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Crane Lifting weight | 2 | t |
| Crane Lifting moment | 4 | t•m |
| Recommended drill pipe | φ102×4.5 | mm×m |
| Max. entry angle | 20 | ° |
| Max. back reaming diamete | 1200 | mm |
| Weight | 18 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Outline dimensions | 10650×2450×2640 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
