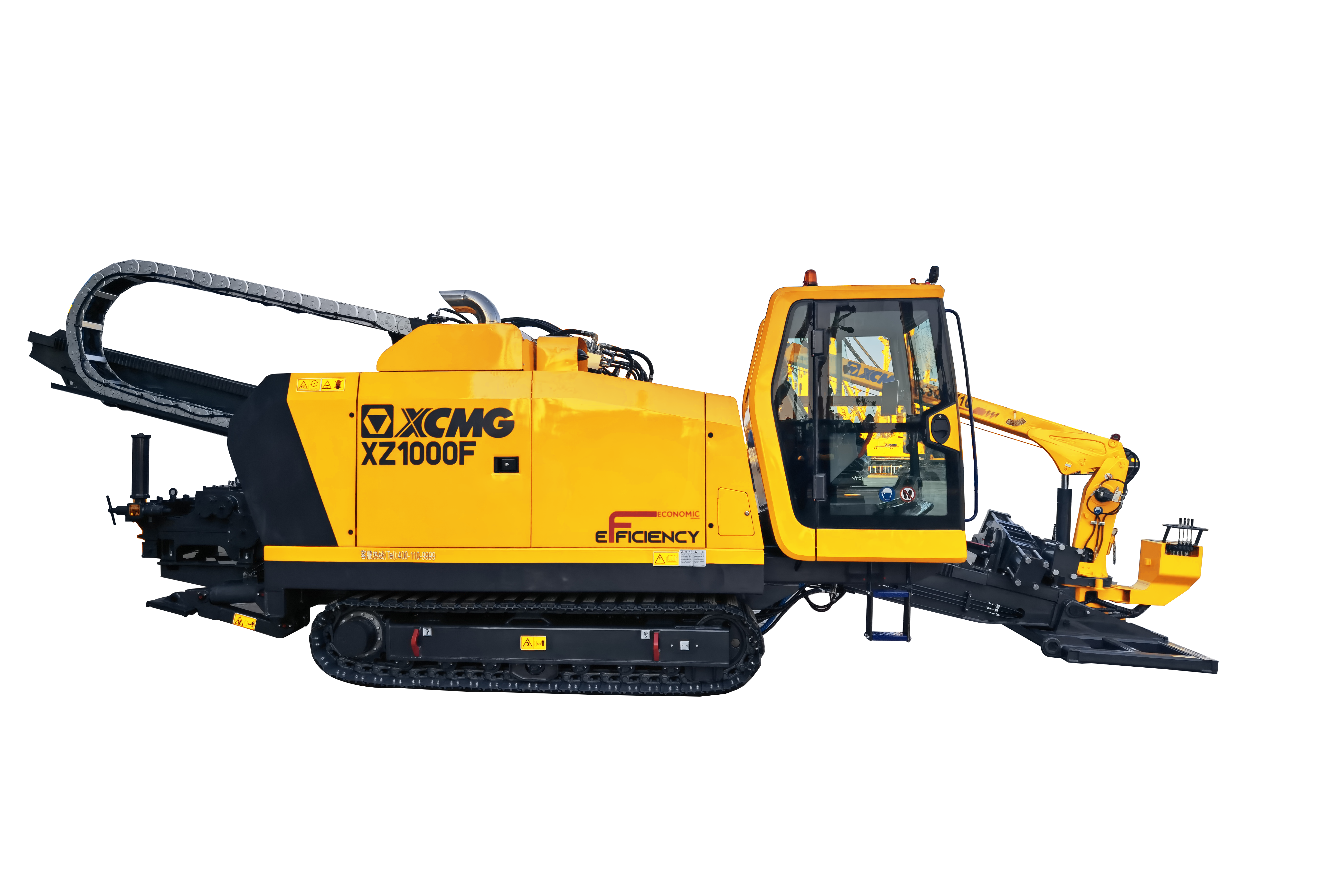

Horizontal Directional Drilling Rig
XZ1000F
XCMG XZ1000F — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diameteΦ1300 mm
Power head Max. thrust-pull force1000 kN
Rated power242 kW
EngineCummins /
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XZ1000F — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diamete: Φ1300 mm · Power head Max. thrust-pull force: 1000 kN · Rated power: 242 kW · Engine: Cummins /
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The medium-tonnage drilling rig can be used in municipal engineering, and can also be used to construct some oil and gas pipelines and in hard rock construction conditions.The medium-tonnage drilling rig is equipped with cab and auxiliary crane as standard.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | / |
| Rated power | 242 | kW |
| Power head Max. thrust-pull force | 1000 | kN |
| Power head Max. thrust-pull speed | 45 | m/min |
| Power head Torque | 42000 | N·m |
| Power head Max. rotation speed | 120 | r/min |
Hydraulic system ＋
| Item | Value | Unit |
|---|---|---|
| Mud pump Max. flow | 800 | L/min |
| Mud pump Max. pressure | 10 | MPa |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Crane Lifting weight | 2 | t |
| Crane Lifting moment | 4 | t•m |
| Recommended drill pipe | Φ114×6(NC38) | mm×m |
| Max. entry angle | 20 | ° |
| Max. back reaming diamete | Φ1300 | mm |
| Weight | 19 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Outline dimensions | 10650×2450×2600 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
