Horizontal Directional Drilling Rig
XZ6600

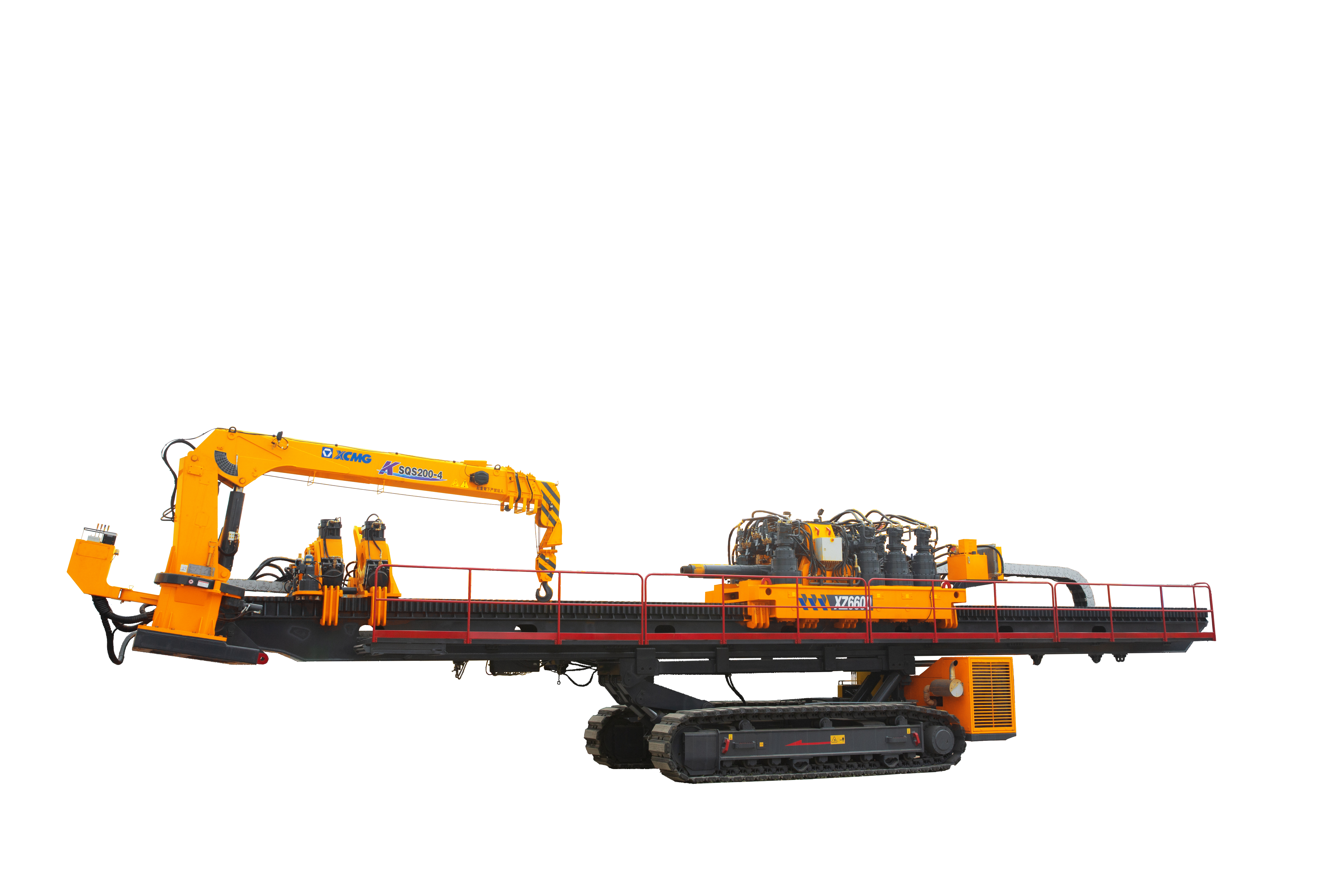

XCMG XZ6600 — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diameteφ2000 mm
Power head Max. thrust-pull force6600 kN
Rated power2×565 kW
EngineVolvo /
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XZ6600 — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diamete: φ2000 mm · Power head Max. thrust-pull force: 6600 kN · Rated power: 2×565 kW · Engine: Volvo /
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
Large-tonnage drilling rig is mainly used for large-diameter and long-distance pipeline construction.The comprehensive digital display and adjustment of the working parameters of the equipment and the multi-directional automation and intelligent design can provide reliable guarantee for the construction safety. A single engine can be used for construction to save fuel and reduce operating costs.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Volvo | / |
| Rated power | 2×565 | kW |
| Power head Max. thrust-pull force | 6600 | kN |
| Power head Max. thrust-pull speed | 32 | m/min |
| Power head Torque | 180/210 | N·m |
| Power head Max. rotation speed | 90 | r/min |
Hydraulic system ＋
| Item | Value | Unit |
|---|---|---|
| Mud pump Max. flow | Additional | L/min |
| Mud pump Max. pressure | 20 | MPa |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Crane Lifting weight | 5 | t |
| Crane Lifting moment | 12.5 | t•m |
| Recommended drill pipe | φ168/φ194×9.6 | mm×m |
| Max. entry angle | 16 | ° |
| Max. back reaming diamete | φ2000 | mm |
| Weight | 73 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Outline dimensions | 19000×3200×3600 | mm |
