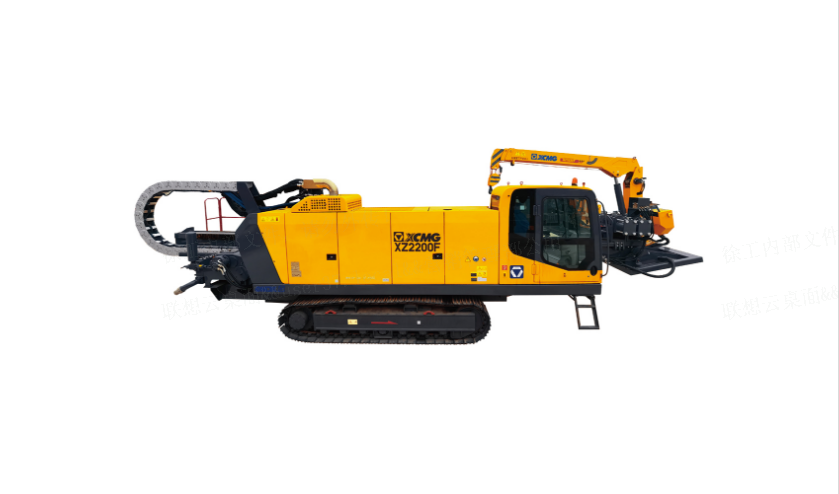

Horizontal Directional Drilling Rig
XZ2200F
XCMG XZ2200F — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diameteφ1500 mm
Power head Max. thrust-pull force2200 kN
Rated power2×242 kW
EngineCummins /
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XZ2200F — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diamete: φ1500 mm · Power head Max. thrust-pull force: 2200 kN · Rated power: 2×242 kW · Engine: Cummins /
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The medium-tonnage drilling rig can be used in municipal engineering, and can also be used to construct some oil and gas pipelines and in hard rock construction conditions.The medium-tonnage drilling rig is equipped with cab and auxiliary crane as standard.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | / |
| Rated power | 2×242 | kW |
| Power head Max. thrust-pull force | 2200 | kN |
| Power head Max. thrust-pull speed | 60 | m/min |
| Power head Torque | 83000 | N·m |
| Power head Max. rotation speed | 115 | r/min |
Hydraulic system ＋
| Item | Value | Unit |
|---|---|---|
| Mud pump Max. flow | 950 | L/min |
| Mud pump Max. pressure | 10 | MPa |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Crane Lifting weight | 3.2 | t |
| Crane Lifting moment | 6.4 | t•m |
| Recommended drill pipe | φ127×6 | mm×m |
| Max. entry angle | 16 | ° |
| Max. back reaming diamete | φ1500 | mm |
| Weight | 33 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Outline dimensions | 13700×3230×3450 | mm |
