XCMG / XZ180E
XCMG equipment / Product profile
Horizontal Directional Drilling Rig
XZ180E

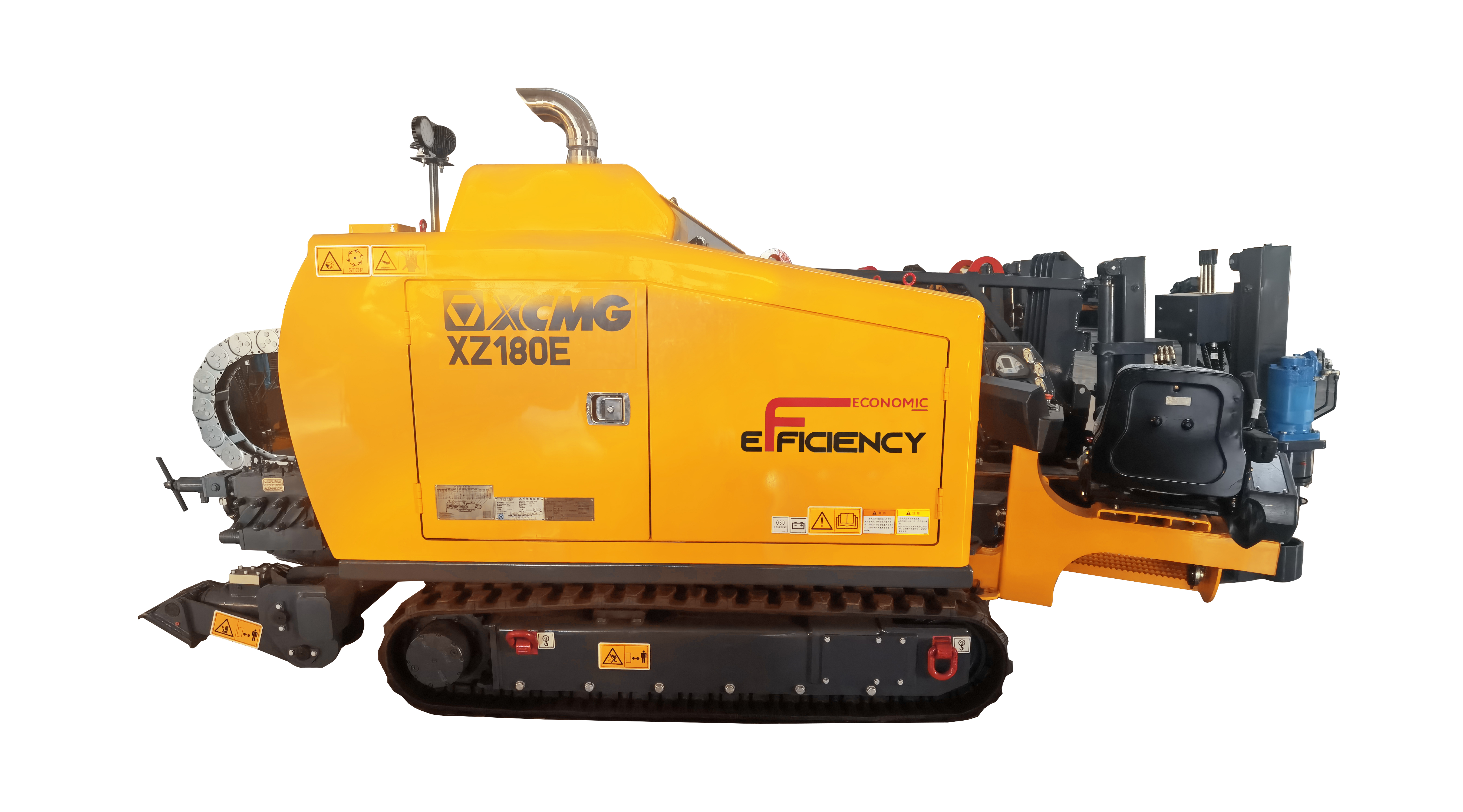

XCMG XZ180E — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diameteφ500 mm
Power head Max. thrust-pull force180 kN
Rated power96 kW
EngineCummins /
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XZ180E — Horizontal Directional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. back reaming diamete: φ500 mm · Power head Max. thrust-pull force: 180 kN · Rated power: 96 kW · Engine: Cummins /
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The small tonnage drilling rig is mainly used in the field of municipal pipe network construction.The equipment adopts integrated design, has small size, and is flexible in construction and convenient for transportation.The drilling rig can be equipped with a variety of functional components to meet diverse needs.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | / |
| Rated power | 96 | kW |
| Power head Max. thrust-pull force | 180 | kN |
| Power head Max. thrust-pull speed | 45 | m/min |
| Power head Torque | 4600 | N·m |
| Power head Max. rotation speed | 200 | r/min |
Hydraulic system ＋
| Item | Value | Unit |
|---|---|---|
| Mud pump Max. flow | 180 | L/min |
| Mud pump Max. pressure | 8 | MPa |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Crane Lifting weight | Not published | t |
| Crane Lifting moment | Not published | t•m |
| Recommended drill pipe | φ60×2 | mm×m |
| Max. entry angle | 18 | ° |
| Max. back reaming diamete | φ500 | mm |
| Weight | 5.5 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Outline dimensions | 4500×1800×2170 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
