XCMG / XSL200B
XCMG equipment / Product profile

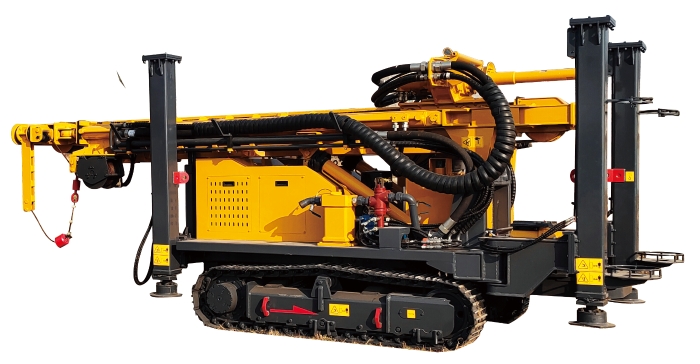

Deep Well Drilling Rig
XSL200B
XCMG XSL200B — Deep Well Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Drilling depth400 m
Max. torque8300/4150 N·m
Rated power92 / 97 kW
Max. diameter of working floorФ330 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XSL200B — Deep Well Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Drilling depth: 400 m · Max. torque: 8300/4150 N·m · Rated power: 92 / 97 kW · Max. diameter of working floor: Ф330 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XSL200B deep well drilling rig adopts full hydraulic control, top drive and crawler travel. With reasonable overall layout, it has high drilling efficiency, is suitable for air or mud drilling technology, and is widely used in water well, geothermal and micro pile drilling projects.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Drilling depth | 400 | m |
| Max. diameter of working floor | Ф330 | mm |
| Max. pulling force | 200 | kN |
| Max. speed | 80/160 | rpm |
| Wight | 9 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Max. torque | 8300/4150 | N·m |
| Rated power | 92 / 97 | kW |
| Emission standard | CN IV / EU II | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Transport dimensions | 5800×1800×2400 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
