XCMG / XSL1000
XCMG equipment / Product profile

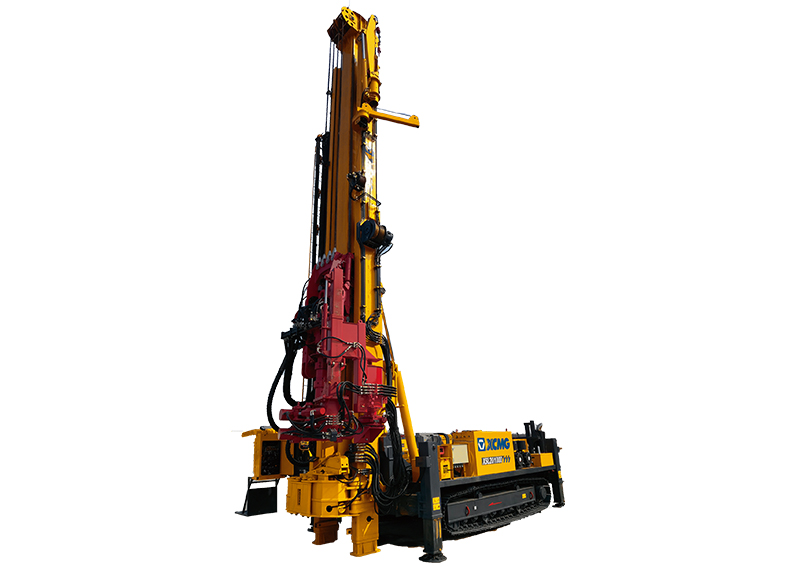

Deep Well Drilling Rig
XSL1000
XCMG XSL1000 — Deep Well Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Drilling depth2000 m
Max. torque32000/20000 N·m
Rated power565 kW
Max. diameter of working floorФ610 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XSL1000 — Deep Well Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Drilling depth: 2000 m · Max. torque: 32000/20000 N·m · Rated power: 565 kW · Max. diameter of working floor: Ф610 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)

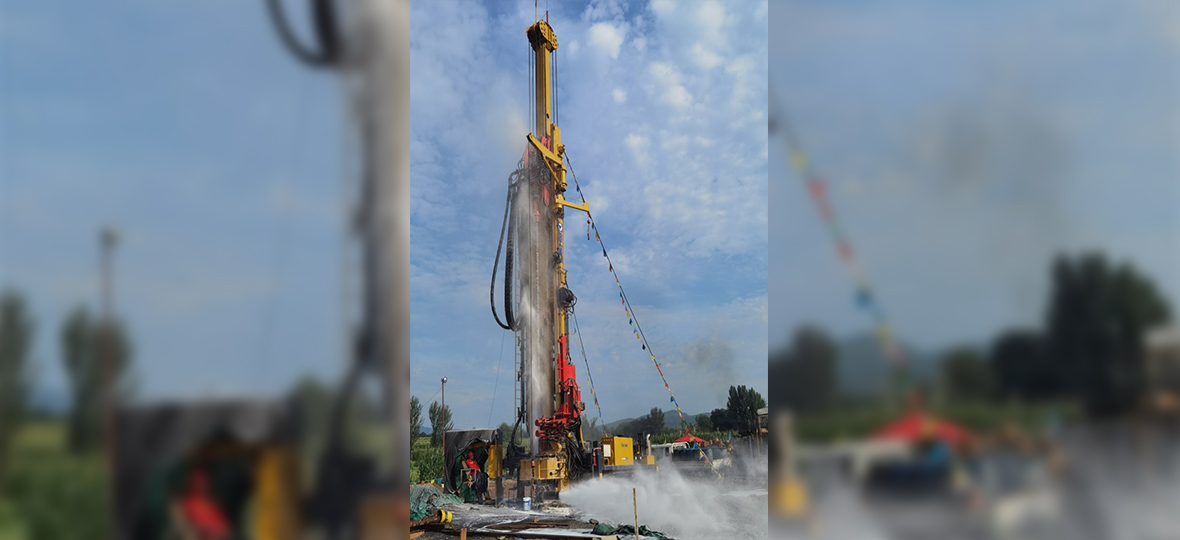

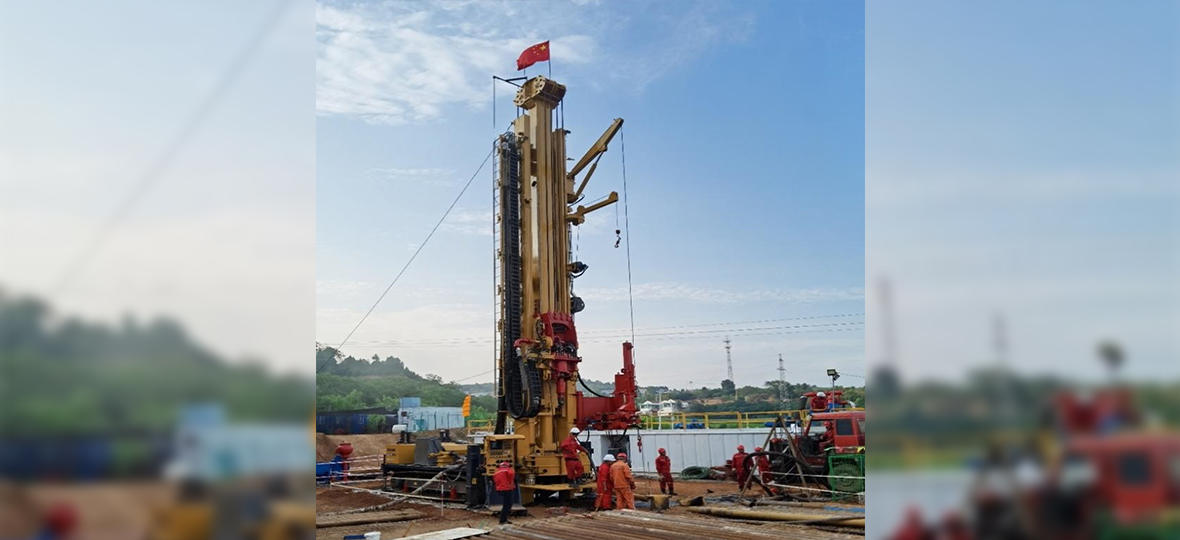

XSL1000E deep well drilling rig adopts full hydraulic control, top drive and crawler travel. With reasonable overall layout, it has high drilling efficiency, is suitable for air or mud drilling technology, and is widely used in water well, geothermal, coal bed gas, and emergency rescue drilling projects.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Drilling depth | 2000 | m |
| Max. diameter of working floor | Ф610 | mm |
| Max. pulling force | 1000 | kN |
| Max. speed | 105/180 | rpm |
| Wight | 50 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Max. torque | 32000/20000 | N·m |
| Rated power | 565 | kW |
| Emission standard | EU II | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Transport dimensions | 14400×3000×3700 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
