Medium Milling Machine
XM1205F

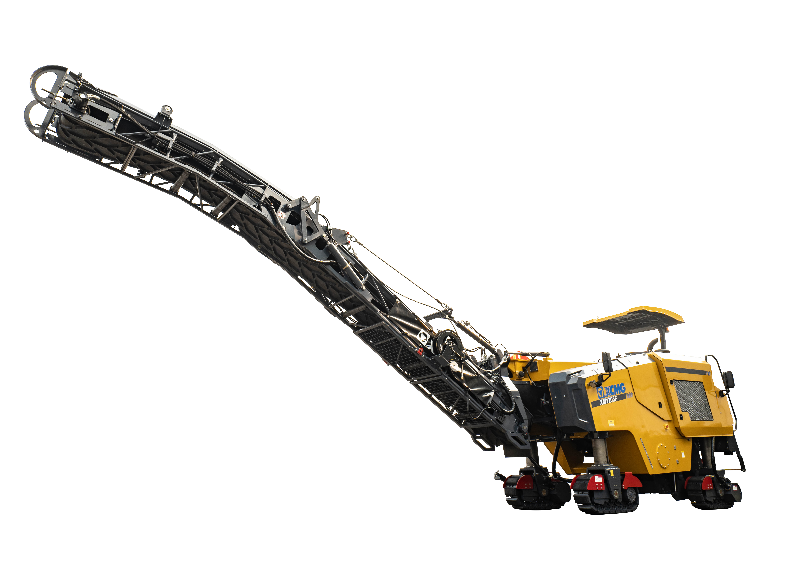

XCMG XM1205F — Medium Milling Machine. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power192 kW
EngineShangchai
EmissionEU Stage 4a/CN Stage Ⅲ
Weight in transportation state20000 kg
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XM1205F — Medium Milling Machine. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power: 192 kW · Engine: Shangchai · Emission: EU Stage 4a/CN Stage Ⅲ · Weight in transportation state: 20000 kg
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XM1205F milling machine is a kind of front-conveying medi-um-sized milling machine with high performance,which is mainlyused for excavation and renovation of asphalt concrete pave-ments of highways,urban roads,airports,freight yards,parkinglots,etc.It can efficiently remove road congestion,waves,meshpatterns,ruts,etc.;excavate the pavement pits and trenches;roughen the cement pavement and mill the surface faulting.This machine adopts various advanced technologies of intelligentcontrol,limit load,water sprinkling intelligent control, engine hightemperature protection and construction data management etc.Itis a kind of pavement maintenance equipment with advancedtechnologies,high working efficiency,convenient operation andhigh reliability.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Shangchai | — |
| Rated Power | 192 | kW |
| Emission | EU Stage 4a/CN Stage Ⅲ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Weight in transportation state | 20000 | kg |
| Weight in work state | 21500 | kg |
| Max.Milling Depth | 300 | mm |
| Number of cutters | 100 | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Milling width | 1200 | mm |
| Transport Dimensions / L x W x H | 9950×2180×3000 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Milling Machine_XM1205F_Shangchai_China Stage Ⅲ_EN_20260106
File size: 24.1 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
