XCMG / XM1005K
XCMG equipment / Product profile
Medium Milling Machine
XM1005K

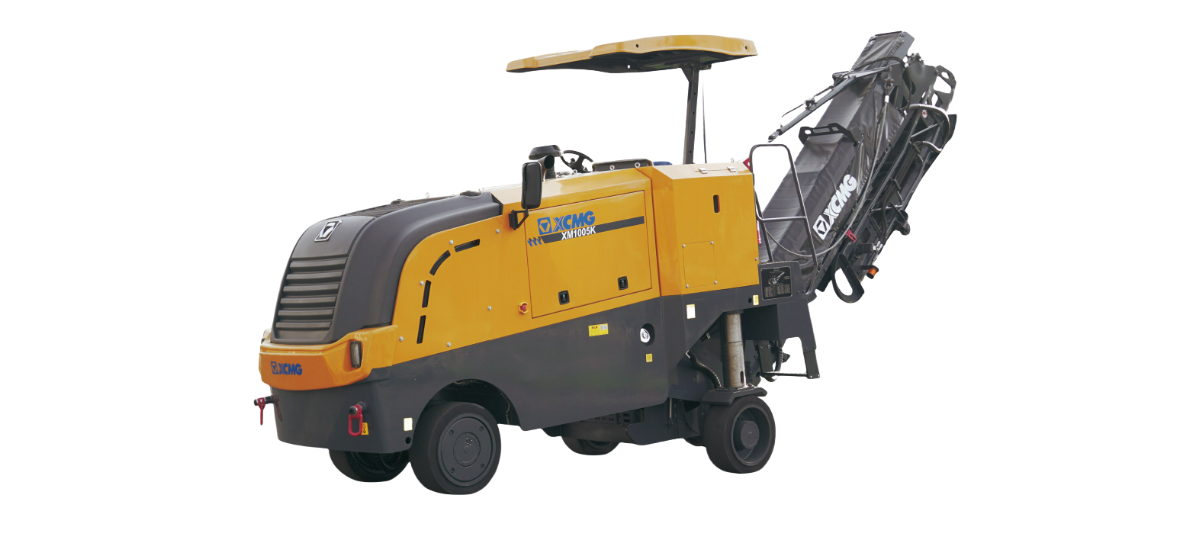

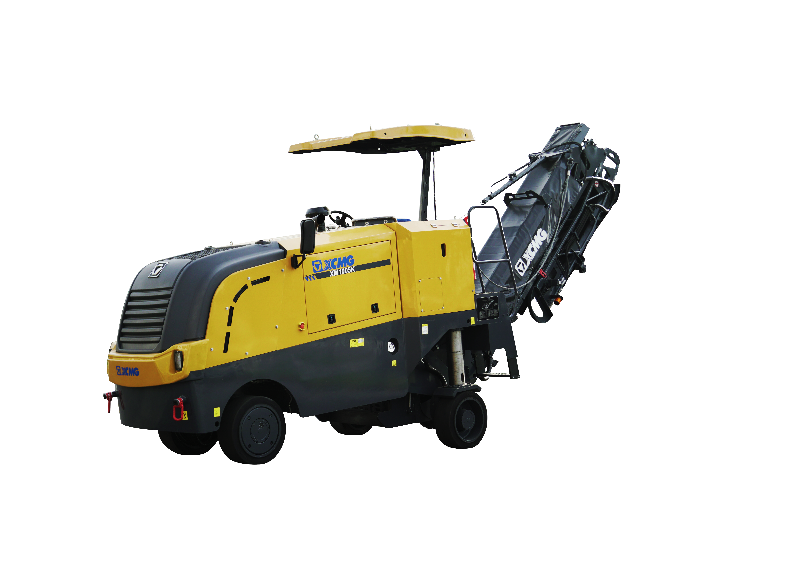

XCMG XM1005K — Medium Milling Machine. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power177 kW
EngineShangchai
EmissionEC Stage ⅢA / CN Stage Ⅲ
Weight in transportation state14000 kg
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XM1005K — Medium Milling Machine. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power: 177 kW · Engine: Shangchai · Emission: EC Stage ⅢA / CN Stage Ⅲ · Weight in transportation state: 14000 kg
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XM1005K milling machine is a kind of medium-sized milling machine with high performance, which is mainly used for excavation and renovation of asphalt concrete pavements of highways, urban roads, airports, freight yards, parking lots etc.It can efficiently remove road congestion, waves, mesh patterns, ruts, etc.; excavate the pavement pits and trenches; roughen the cement pavement and mill the surface faulting. This machine has high work efficiency, high level of intelligence, long working cycle, and good maneuverability, reliability and maintenance, and the overall technical performance has reached the international advanced level.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Shangchai | — |
| Rated Power | 177 | kW |
| Emission | EC Stage ⅢA / CN Stage Ⅲ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Weight in transportation state | 14000 | kg |
| Weight in work state | 14700 | kg |
| Max.Milling Depth | 300 | mm |
| Number of cutters | 80 | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Milling width | 1000 | mm |
| Transport Dimensions / L x W x H | 9575 x 2295 x 2690 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Milling Machine_XM1005K_Shangchai_China Stage Ⅲ_EN_20260106
File size: 29.4 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
