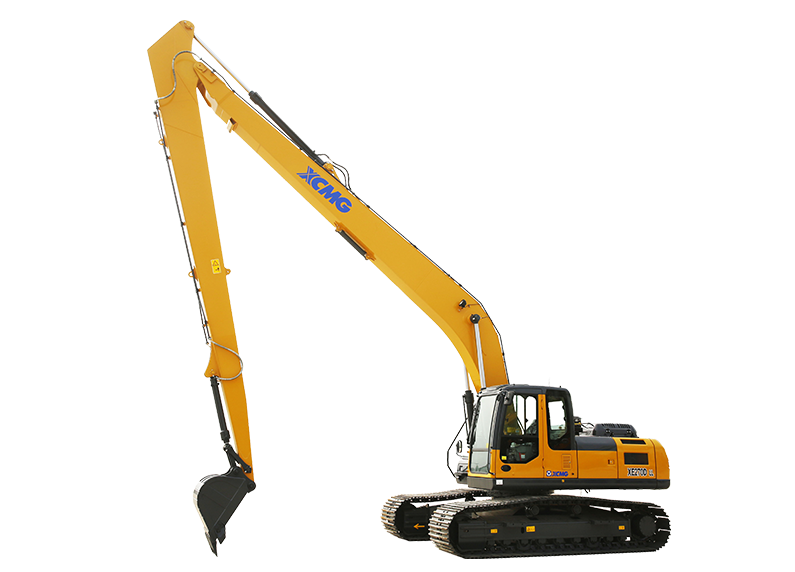

Long Reach Excavator
XE270DLL
XCMG XE270DLL — Long Reach Excavator. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
Overview
XCMG XE270DLL — Long Reach Excavator. Review published parameters and request the configuration for your destination market from XEMACH.
Operating weight: 28300 Kg · Bucket capacity: 0.4 m³ · Rated power: 150 kW/rpm · Bucket digging force: 185 kN
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XE270DLL hydraulic excavator has a maximum digging radius of 18 meters and is widely used in working conditions restricted by ground environment such as river dredging, bank protection, slope construction and subway construction.
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 28300 | Kg |
| Bucket capacity | 0.4 | m³ |
| Travel speed | 6.1/3.8 | km/h |
| Swing speed | 11.4 | r/min |
| Bucket digging force | 185 | kN |
| Arm digging force | 129 | kN |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 150 | kW/rpm |
| Engine model | Cummins QSB7 | — |
| Emission standard | National Stage Ⅲ | — |
| Maximum torque/speed | 825/1250 | N.m |
| Displacement | 6.7 | L |
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
