XCMG / XCA450_K
XCMG equipment / Product profile
All Terrain Crane

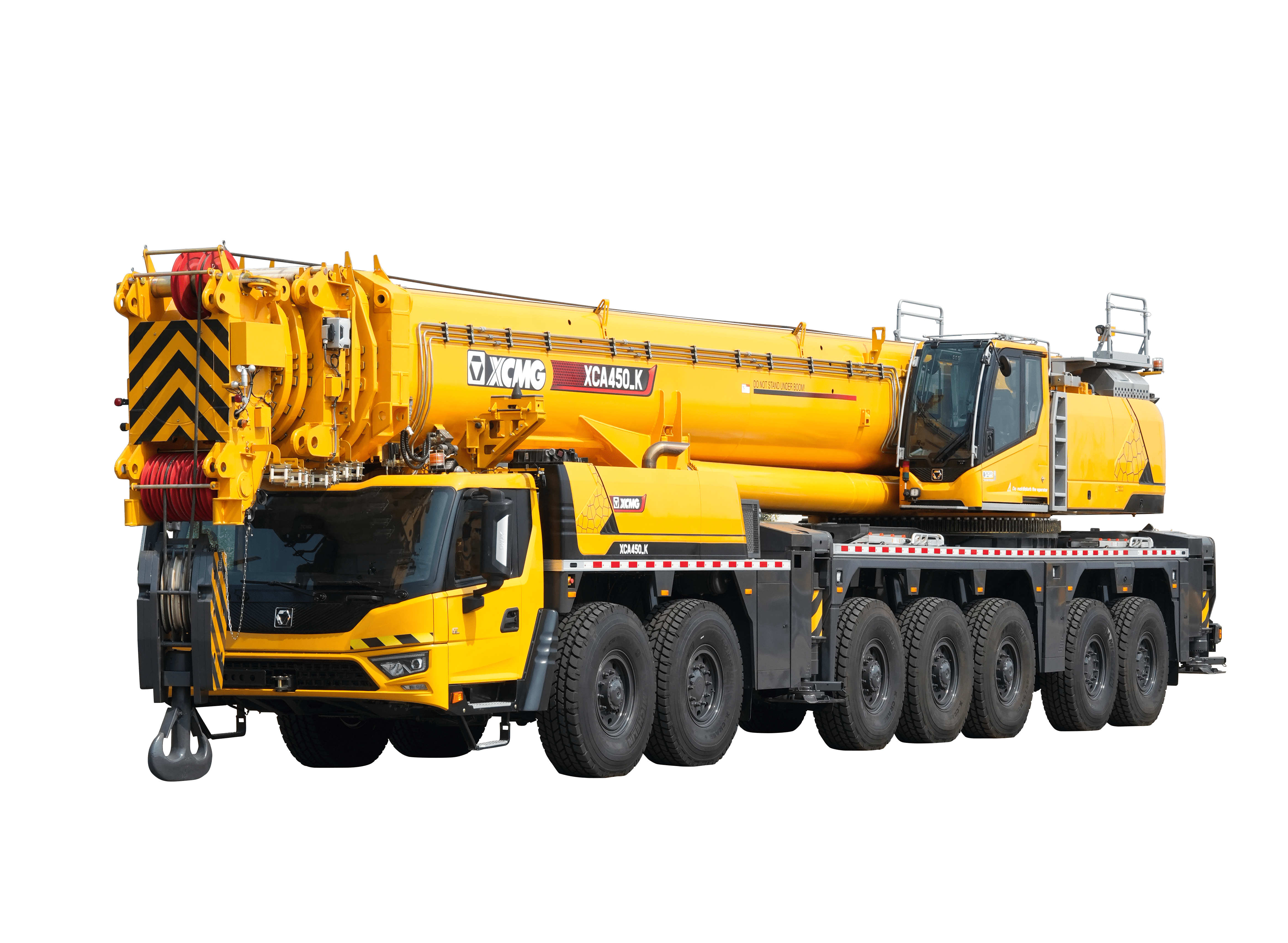

XCA450_K
XCMG XCA450_K — All Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity450 t
Max. hoist height133 m
Max.load moment12348 kN.m
Telescopic boom93.1 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCA450_K — All Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 450 t · Max. hoist height: 133 m · Max.load moment: 12348 kN.m · Telescopic boom: 93.1 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The XCA 450_K A is a 7-axle, 450-ton all-terrain crane featuring extensive operational coverage and a super-lift system. Its boom comprises 8 sections extending to 93.1 m, paired with a Y-shaped dual-rope super-lift configuration. Optional jibs include a 50.5 m fixed jib or 91.7 m luffing jib, supported by up to 130 t counterweight. Power and control systems utilize a dual-engine setup, dual-slewing mechanism, and dual-luffing cylinders.The 7-axle all-terrain chassis employs an H-shaped outrigger configuration, with 4 driven axles and 7-axle full steering capability.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 450 | t |
| Telescopic boom | 93.1 | m |
| Number of axles | 7 | — |
| Max.load moment | 12348 | kN.m |
| Drive/Steering | 14×8×14 | — |
| Driving speed | 60 | km/h |
| Dead Weight in Travel State | 98200 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 133 | m |
| Dimensions | 19608×3000×4000 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | OM473LA.E5-1 | — |
| Drive engine power | 480 | kw |
| Emission standard | EU Stage V | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
