XCMG / XCA100_S
XCMG equipment / Product profile
All Terrain Crane
XCA100_S

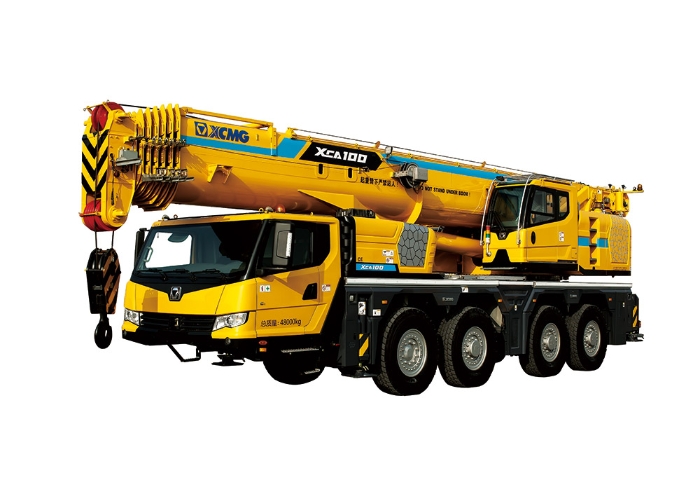

XCMG XCA100_S — All Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity100 t
Max. hoist height88 m
Max.load moment2689 kN.m
Telescopic boom60 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCA100_S — All Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 100 t · Max. hoist height: 88 m · Max.load moment: 2689 kN.m · Telescopic boom: 60 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XCA100-S is widely used in infrastructure construction such as construction sites, urban elevated bridge construction, high-rise tower crane disassembly and assembly, as well as other complex operating environments such as petroleum and chemical engineering, for equipment hoisting and steel structure installation work
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 100 | t |
| Telescopic boom | 60 | m |
| Number of axles | 4 | — |
| Max.load moment | 2689 | kN.m |
| Drive/Steering | 8x6x8 | — |
| Driving speed | 80 | km/h |
| Dead Weight in Travel State | 48000 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 88 | m |
| Dimensions | 13180x2750x4000 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | ISM11E5 440 | — |
| Drive engine power | 324 | kw |
| Emission standard | EU Stage V | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
