XCMG / XCA350L8
XCMG equipment / Product profile

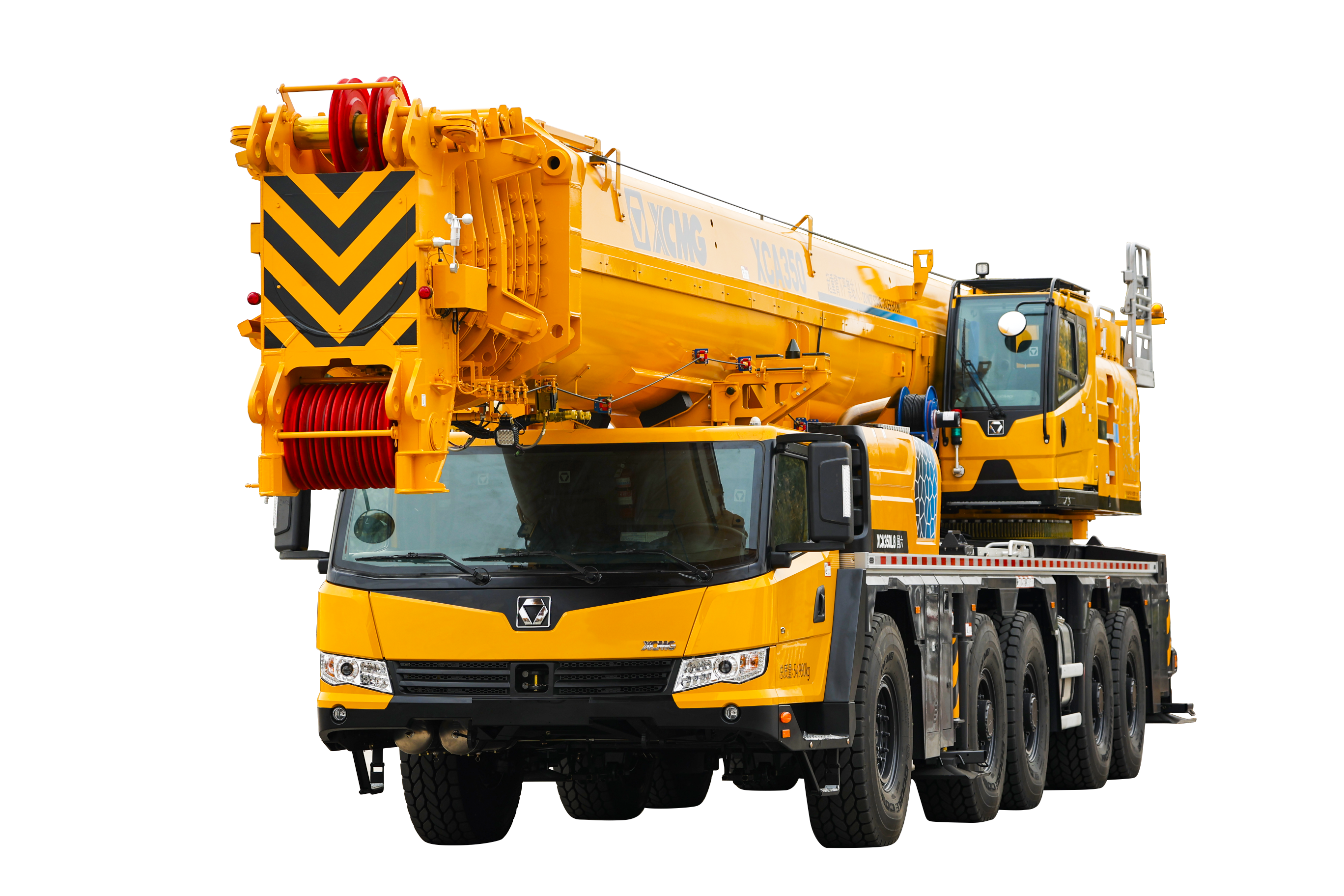

All Terrain Crane
XCA350L8
XCMG XCA350L8 — All Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity350 t
Max. hoist height126 m
Max.load moment8310 kN.m
Telescopic boom92 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCA350L8 — All Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 350 t · Max. hoist height: 126 m · Max.load moment: 8310 kN.m · Telescopic boom: 92 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The dual-engine 5-axle 8-section boom all terrain crane boasts a superlong boom, covering transmission tower hoisting below 120 m and high-rise building hoisting.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 350 | t |
| Telescopic boom | 92 | m |
| Number of axles | 5 | — |
| Max.load moment | 8310 | kN.m |
| Drive/Steering | 10×8×10 | — |
| Driving speed | 80 | km/h |
| Dead Weight in Travel State | 54990 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 126 | m |
| Dimensions | 16990×3000×4000 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | WP13.550E62（Weichai） | — |
| Drive engine power | 405 | kw |
| Emission standard | China VI emission standard | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
