XCMG / XCA250_K
XCMG equipment / Product profile
All Terrain Crane
XCA250_K

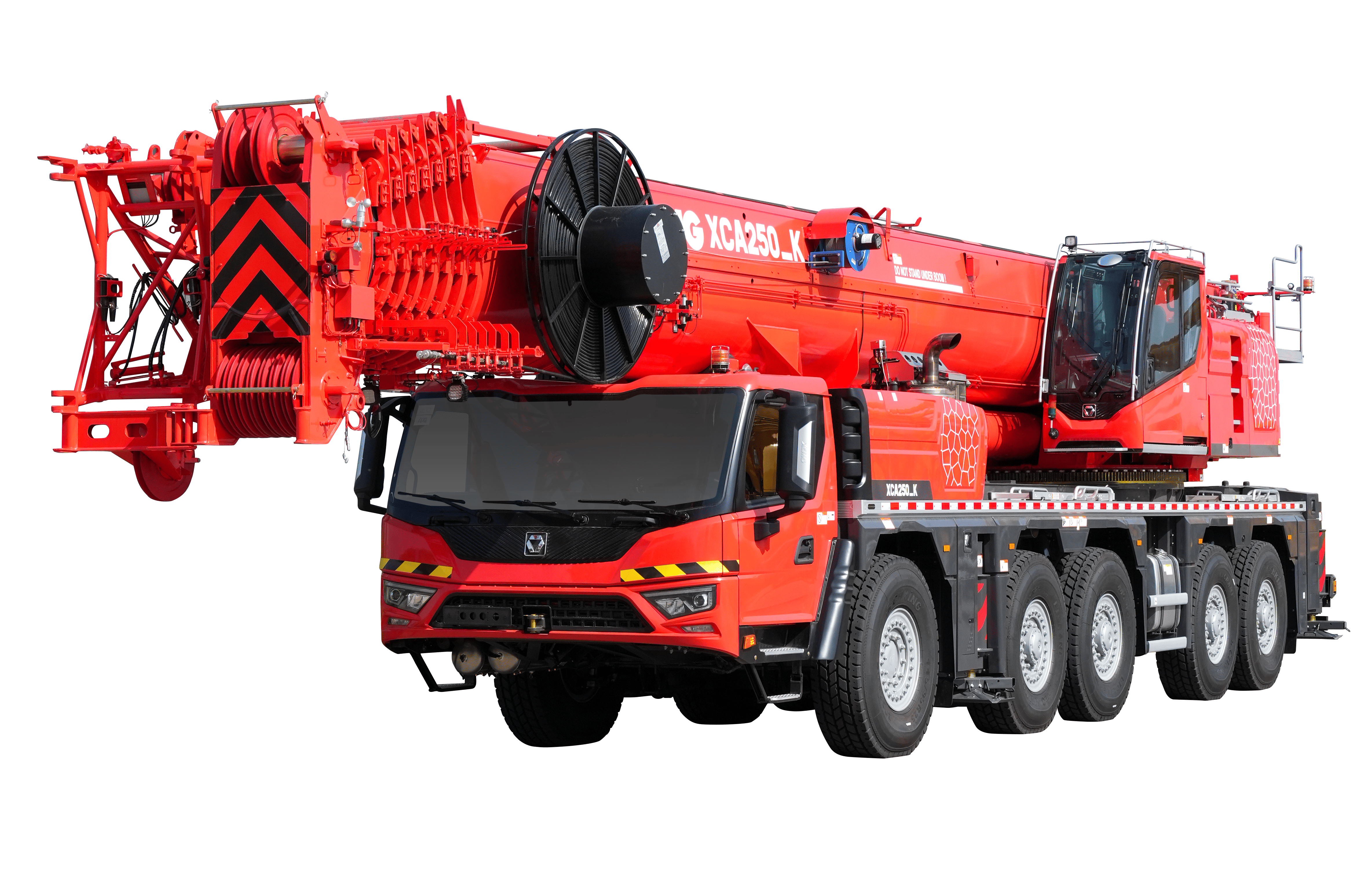

XCMG XCA250_K — All Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity250 t
Max. hoist height115 m
Max.load moment6586 kN.m
Telescopic boom88 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCA250_K — All Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 250 t · Max. hoist height: 115 m · Max.load moment: 6586 kN.m · Telescopic boom: 88 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The five-axle, dual-engine all-terrain crane XCA250_K features an extra-long boom delivering exceptional performance. It is ideally suited for diverse applications, including urban construction installation, tower crane assembly and disassembly, bridge construction, and equipment installation.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 250 | t |
| Telescopic boom | 88 | m |
| Number of axles | 5 | — |
| Max.load moment | 6586 | kN.m |
| Drive/Steering | 10×8 | — |
| Driving speed | 60 | km/h |
| Dead Weight in Travel State | 70800 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 115 | m |
| Dimensions | 17280×3000×4050 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | OM471LA.E5-1 | — |
| Drive engine power | 390 | kw |
| Emission standard | EU Stage V、EPA /CARB Tier 4 final | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
Request technical documents ↗Related models
