XCMG / XUM135
XCMG equipment / Product profile

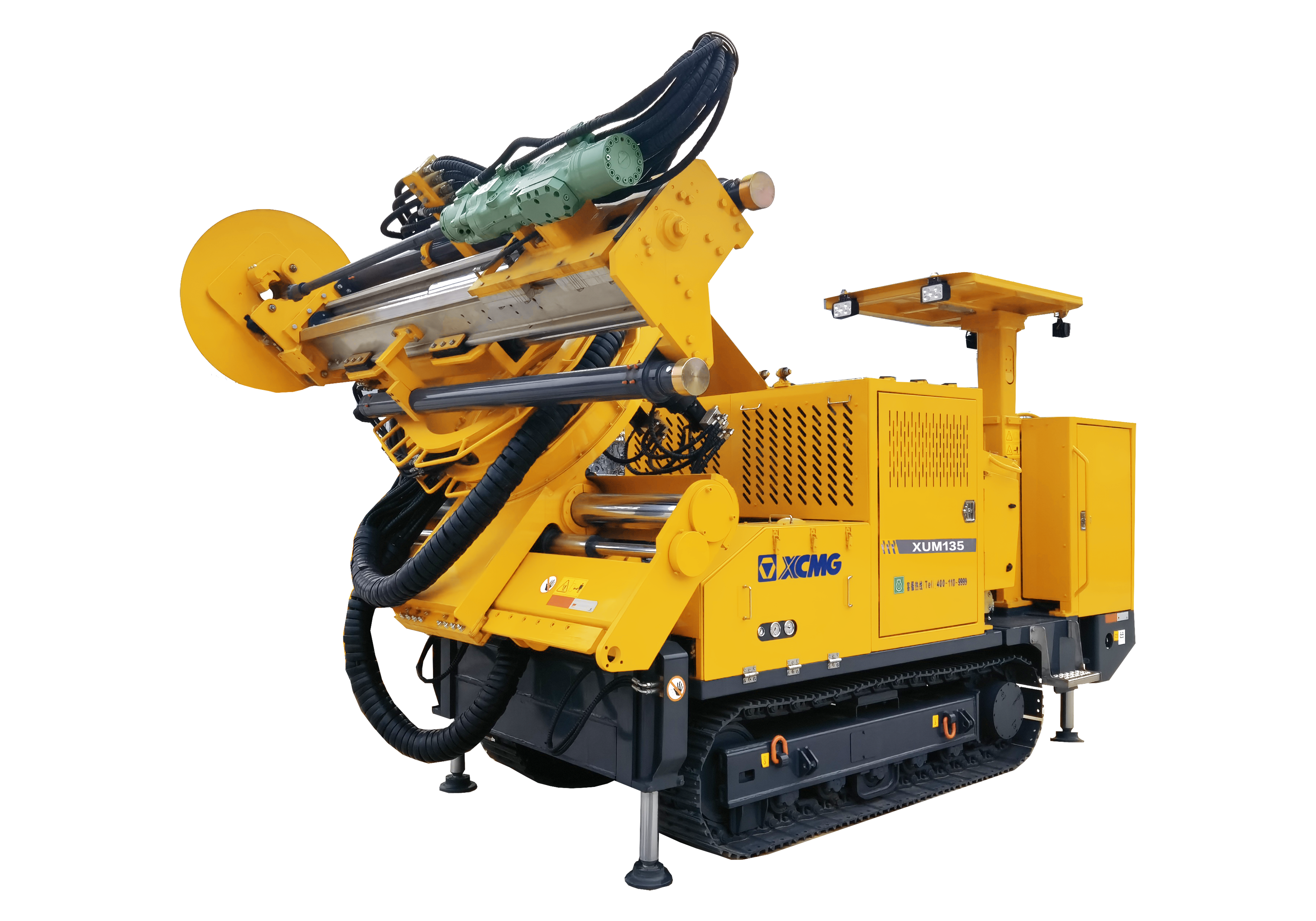

Production Drill Rig
XUM135
XCMG XUM135 — Production Drill Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Engine Rated power73.5 kW
Engine BrandYuchai /
Engine ModelYCF30100-T480 /
ITEMSPARAMETER UNIT
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XUM135 — Production Drill Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Engine Rated power: 73.5 kW · Engine Brand: Yuchai / · Engine Model: YCF30100-T480 / · ITEMS: PARAMETER UNIT
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XUM135 is mainly suitable for the operation of long hole and anchor cable holes in metal mines (such as underground gold mines,iron ores,and copper mines), non-metal mines (such as gypsum mines and phosphorite), hydropower projects,small tunnels,inclined shafts,culverts, etc.• Suitable tunnel size:3.5m×3.5m~7.5m×5m;• The structure of "slewing bearing +swing cylinder" is adopted,with high overall strength and optional deflection mechanism to increase the working range of parallel holes;• The drilling system adopts load-sensitive control and output on demand,with a high energy utilization rate;• The control system is developed based on the controller,has good openness,and is convenient for easy addition of various functional modules.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| ITEMS | PARAMETER | UNIT |
| Rock drill | Montabet HC95LQW | Brand model |
| Drilling diameter | 64-102 | mm |
| Boom | 1156 | Feed extension |
| Feed | 3255 | Total length of feed |
| Hole depth | 35 | m |
| Chassis | 14 | Gradeability |
| Tramming speed | 10 | km/h |
| Water system | 5 | Capacity |
| Air system | 700 | Capacity |
| Weight | 18 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Impact power | 24 | kW |
| Engine manufacture | Cummins | / |
| Engine power | 74 | kW |
| Engine emission standard | CN III | / |
| Electrical system | 85 | Total installed power |
| Voltage/Frequency | 380/50 | V/Hz |
| Engine Brand | Yuchai | / |
| Engine Model | YCF30100-T480 | / |
| Engine Rated power | 73.5 | kW |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Drill steel length | 1220 | mm |
| Cable length | 80 | m |
Hydraulic system ＋
| Item | Value | Unit |
|---|---|---|
| Water inlet pressure | 2 | bar |
| Pressure | 8 | bar |
Cab standard ＋
| Item | Value | Unit |
|---|---|---|
| Safety protection functions | Electric leakage,overload and short circuit protection | / |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
Request technical documents ↗XEMACH / XCMG
Request a quote ↗XUM135
Tell us the destination, application and preferred configuration. Our machinery team will confirm availability and export details.
