XCMG / XUD235B
XCMG equipment / Product profile

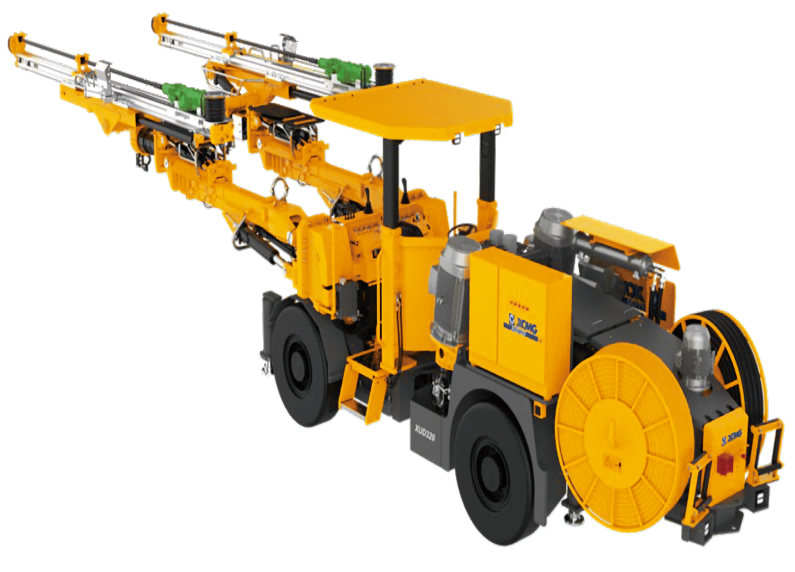

Face Drill rig
XUD235B
XCMG XUD235B — Face Drill rig. Review published parameters and request the configuration for your destination market from XEMACH.
Total operating weight22.5 t
Engine Rated power96 kW
Engine BrandCummins /
Engine ModelB3.9CS4 130 /
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XUD235B — Face Drill rig. Review published parameters and request the configuration for your destination market from XEMACH.
Total operating weight: 22.5 t · Engine Rated power: 96 kW · Engine Brand: Cummins / · Engine Model: B3.9CS4 130 /
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
High Reliability: The light aluminum alloy beam has high bending, torsion and fatigue resistance. The unique single-layer hose reel can effectively improve the hose life and reduce the maintenance strength.Precise Operation: The drill boom structure is newly optimized and upgraded to get larger extension stroke and shorter retracted length.Stable Construction: The drilling system has anti-jamming, anti-idle-drilling and automatic withdraw functions, which can effectively improve the drilling efficiency and reduce the loss of drilling tools.Safety Protection: The full cover structure, top anti-skid design, and air spring assisted opening of left and right doors provide convenience for maintenance. The enclosed cab with cooling and heating A/C ensures low dust and noise.Intelligent Control System: The whole machine is equipped with a fully electronic control system based on CAN bus, which is easy and fast to operate.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine Brand | Cummins | / |
| Engine Model | B3.9CS4 130 | / |
| Engine Rated power | 96 | kW |
| Engine Emission standard | 欧III/国四 Euro Stage III/China Stage IV | / |
| Rock drill Impact power | 21/20 | kW |
| Electrical system Voltage | 380 | V |
| Electrical system Frequency | 50 | Hz |
| Electrical system Cable length | 80 | m |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rock drill Brand | 蒙特贝/XCMG | / |
| Rock drill Model | HC95SA/XHD20 | / |
| Drill boom Boom extension | 1450 | mm |
| Drill boom Feed extension | 1250 | mm |
| Feed beam Single-pass drilling depth | 3400/4000（选配） | mm |
| Chassis Gradeability | 14 | ° |
| Chassis Traveling speed | 15 | km/h |
| Total operating weight | 22.5 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Feed beam Total length | 5380/5990（选配 Optional） | mm |
| Feed beam Drill steel length | 3700/4310（选配） | mm |
| Dimensions Transport state | 12611×2000×2750 | mm |
Hydraulic system ＋
| Item | Value | Unit |
|---|---|---|
| Water system Rated flow | 6 | m3/h |
| Water system Min. water inlet pressure | 2 | bar |
| Air system Flow | 1150 | L/min |
| Air system Pressure | 10 | bar |
