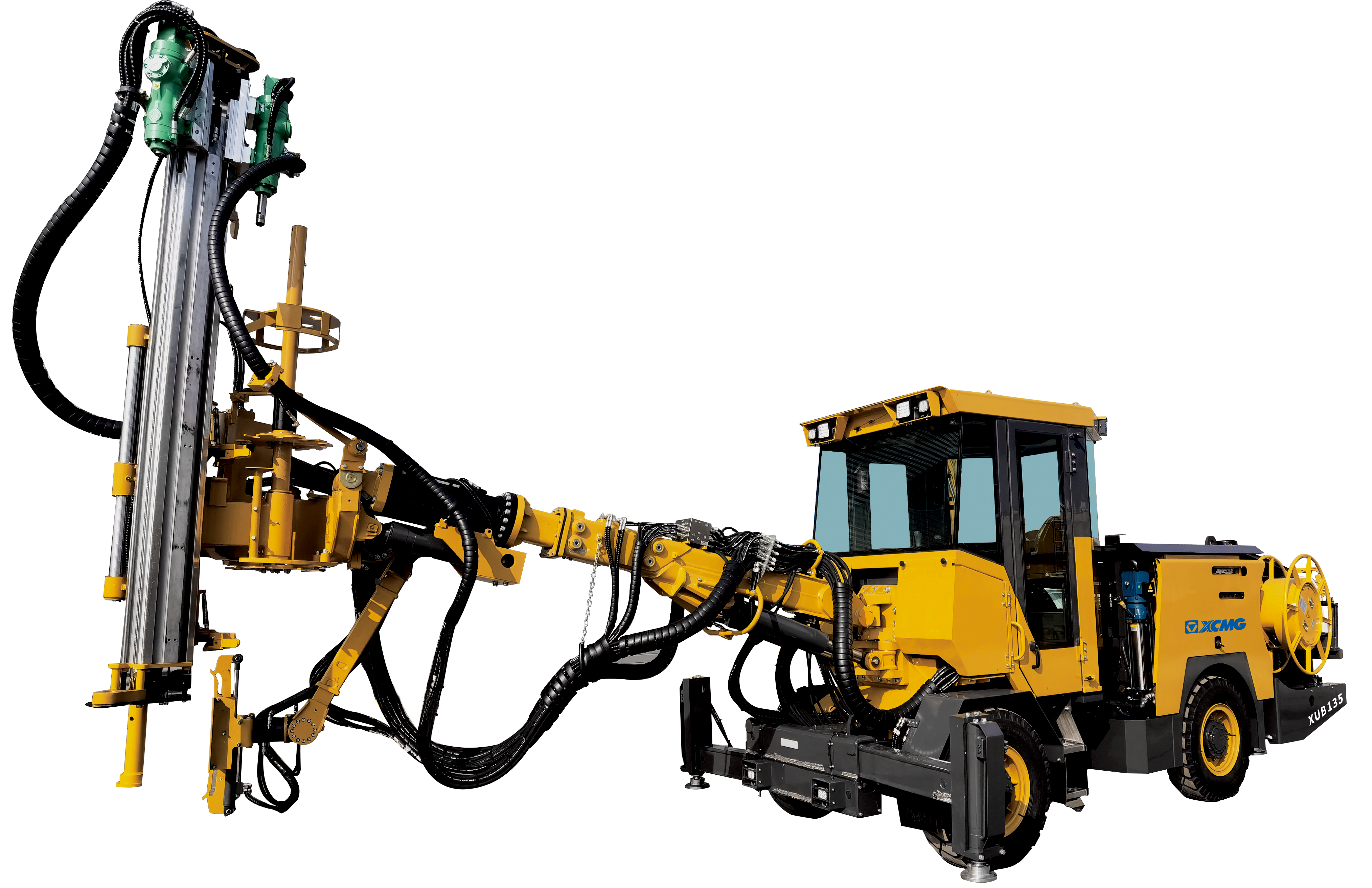

Rock Bolter
XUB135
XCMG XUB135 — Rock Bolter. Review published parameters and request the configuration for your destination market from XEMACH.
Engine power66/74 kW
Drifter brand & modelMontabert HC25
Impact power8 kW
Anchor bolt length1800(Standard) / 2000 / 2200 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XUB135 — Rock Bolter. Review published parameters and request the configuration for your destination market from XEMACH.
Engine power: 66/74 kW · Drifter brand & model: Montabert HC25 · Impact power: 8 kW · Anchor bolt length: 1800(Standard) / 2000 / 2200 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XUB135 is mainly suitable for the bolting operations in metal mines (such as underground gold mines,iron ores,and copper mines),non-metal mines (such as gypsum mines and phosphorite),hydropower projects,small tunnels,inclined shafts,culverts,etc;• For the construction of 1.8m anchor bolts,the suitable tunnel size is 3.5m×3.5m-8.8m×7.1m;• A reverse braking system is optional for the service brake to improve safety under long downhill conditions;• The impact pump and the auxiliary pump adopt two independent plunger pumps,with better parameter matching;• The water pump is equipped with an automatic exhaust device to avoid manual exhaust operation.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| ITEMS | PARAMETER | UNIT |
| Rock drill | Montabert HC50 | Brand model |
| Drilling diameter | 45–76 | mm |
| Chassis | 14 | Gradeability |
| Tramming speed | 15 | km/h |
| Bolting head | 1800/2000/2200/2500 | Anchor bolt length |
| Drilling depth | 1915/2115/2315/2555 | mm |
| Weight of mesh | ≤50 | kg |
| Screen handler | 1 | One-time mesh hanging qty |
| Size of mesh opening | 100×100–130×130 | mm |
| Water system | 5 | Capacity |
| Air system | 600 | Capacity |
| Weight | 14 | t |
| Drifter brand & model | Montabert HC25 | — |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Impact power | 13 | kW |
| Engine manufacturer | Yuchai/Cummins | / |
| Engine power | 66/74 | kW |
| Engine emission standard | CN III | / |
| Electrical system | 66 | Total installed power |
| Voltage/Frequency | 380/50 | V/Hz |
| Impact power | 8 | kW |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Drill steel length | 2125/2375/2575/2775 | mm |
| Total length | 3330/3530/3730/4060 | mm |
| Cable length | 80 | m |
| Anchor bolt length | 1800(Standard) / 2000 / 2200 | mm |
Hydraulic system ＋
| Item | Value | Unit |
|---|---|---|
| Water inlet pressure | 2 | bar |
| Pressure | 8 | bar |
Cab standard ＋
| Item | Value | Unit |
|---|---|---|
| Safety protection functions | Electric leakage,overload and short circuit protection | / |
