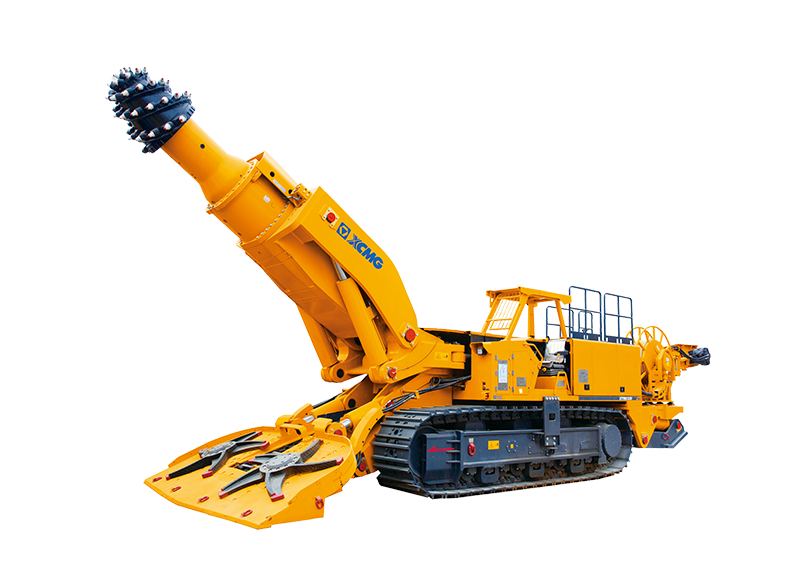

XCMG / XTR6/320
XCMG equipment / Product profile
Roadheader for tunneling
XTR6/320
XCMG XTR6/320 — Roadheader for tunneling. Review published parameters and request the configuration for your destination market from XEMACH.
Cutter motor power320/240 kW
Cutting height6600 mm
Cutting width7600 mm
Shovel width3800 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XTR6/320 — Roadheader for tunneling. Review published parameters and request the configuration for your destination market from XEMACH.
Cutter motor power: 320/240 kW · Cutting height: 6600 mm · Cutting width: 7600 mm · Shovel width: 3800 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XCMG XTR series roadheader is a new type of tunnel boring machine developed for the needs of various cross-section tunnels. This series of roadheader has strong rock breaking ability, high construction efficiency and wide cutting range. It is suitable for small and medium cross-section water conservancy, subway tunnels and large cross-section highway and railway tunnels. XTR6/320 roadheader has strong geological adaptability, and can stably work in tunnels with rock hardness of 80 MPa. Its cutting performance is stable, cutting head wear is small, and semi-circular, oval, rectangular, horseshoe shaped and other special-shaped and section excavation can be realized.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Cutting height | 6600 | mm |
| Cutting width | 7600 | mm |
| Shovel width | 3800 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Cutter motor power | 320/240 | kW |
| Voltage | AC 1140 | V |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Traveling speed | 6 | m/min |
| Gradeability | ±18 | ° |
| Weight | 125 | t |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
