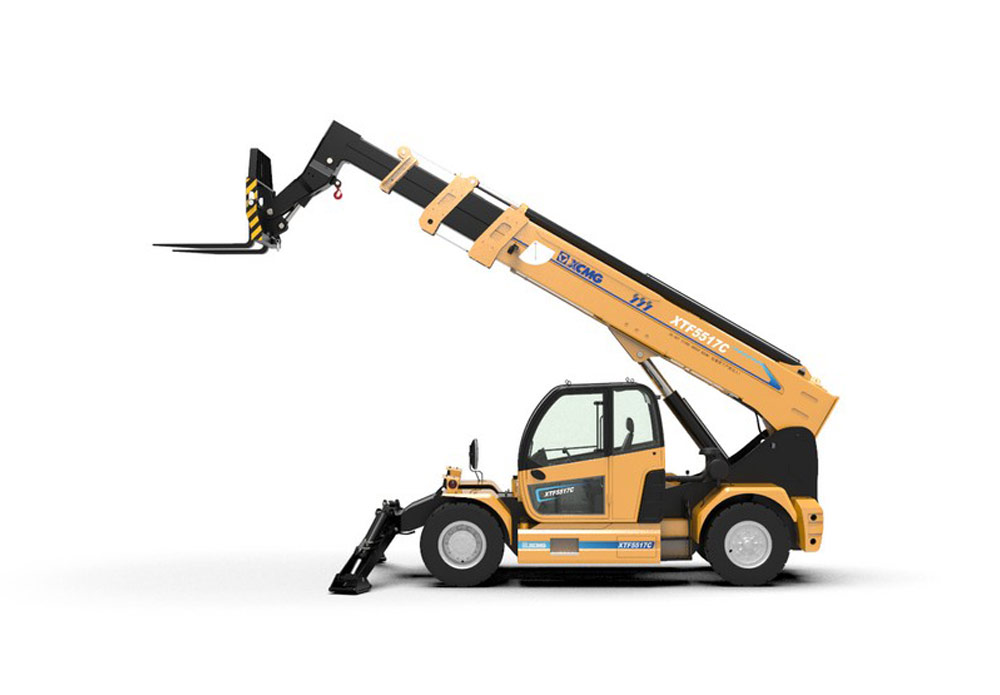

XCMG / XTF5517C
XCMG equipment / Product profile
Telehandler
XTF5517C
XCMG XTF5517C — Telehandler. Review published parameters and request the configuration for your destination market from XEMACH.
Lifting capacity5500 kg
Lifting height17.1 m
Vehicle weight15600 kg
Engine modelQuanchai-S45
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XTF5517C — Telehandler. Review published parameters and request the configuration for your destination market from XEMACH.
Lifting capacity: 5500 kg · Lifting height: 17.1 m · Vehicle weight: 15600 kg · Engine model: Quanchai-S45
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XCMG telescopic handler stands out for its maneuverability and terrian adaptability, which is built with 3 types of steering mode, four-section telescopic boom with diversified attachments and ± 10° leveling system to tackle multiple demanding working conditions.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine model | Quanchai-S45 | — |
| Emission | EU3/Tier 3, EU4/Tier 4F, EU5 | — |
| Battery | Not published | — |
| Battery capacity | Not published | kWh |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Transmission | Shaoxing Jindao Gearbox Co.,Ltd | — |
| Axle | Hefei Haiyuan Machinery Co., Ltd | — |
| Lifting capacity | 5500 | kg |
| Vehicle weight | 15600 | kg |
| Lifting capacity | Not published | lb |
| Vehicle weight | Not published | with fork |
| Motor | Not published | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Wheelbase | 3490 | mm |
| Lifting height | 17.1 | m |
| Dimension | 2,546*2,651*6,170 | mm |
| Wheelbase | Not published | in |
| Lifting height | Not published | ft |
| Dimension | Not published | in._ |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
Request technical documents ↗Related models
XEMACH / XCMG
Request a quote ↗XTF5517C
Tell us the destination, application and preferred configuration. Our machinery team will confirm availability and export details.
