XCMG / XTD3133C
XCMG equipment / Product profile
Drill Jumbo

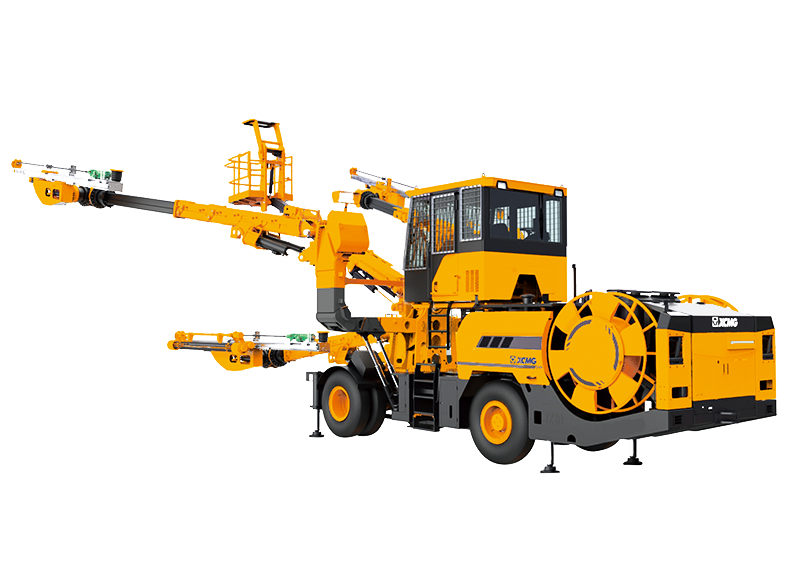

XTD3133C
XCMG XTD3133C — Drill Jumbo. Review published parameters and request the configuration for your destination market from XEMACH.
Rock drill brand & modelMontabert HC109
Impact power18.8 kW
Coverage area (width×height)17400×13300 mm
Coverage area17400×13300 width×height
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XTD3133C — Drill Jumbo. Review published parameters and request the configuration for your destination market from XEMACH.
Rock drill brand & model: Montabert HC109 · Impact power: 18.8 kW · Coverage area (width×height): 17400×13300 mm · Coverage area: 17400×13300 width×height
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XTD3133C drill jumbo is mainly applicable for the driving operations of tunnel, water conservancy, hydropower and other underground projects. It has a large operation range, intelligent control, a variety of operation modes to choose from, and has the functions of anti-jamming, anti-idle-drilling and automatic retreat of drilling tool to effectively improve the drilling efficiency and lower drilling tool loss. With automatic construction, accurate positioning and high hole distribution efficiency, it can complete the hole layout, explosive placing, drilling cloud map output and other operations to improve the accuracy of drilling and reduce the requirements for operating experiences. Various configurations such as drill rod adding system and 3D scanning system can meet the requirements of different working conditions. The maximum coverage area is up to 200㎡.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rock drill brand & model | Montabert HC109 | — |
| Coverage area | 17400×13300 | width×height |
| Total weight | 53.5 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Impact power | 18.8 | kW |
| Installed power | 282 | kW |
| Power of engine | 191 | kW |
| Engine manufacturer | Cummins | — |
| Emission standard | CN IV | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Cable length | 80 | m |
| Coverage area (width×height) | 17400×13300 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
