XCMG / XS265S(XS265SPD)
XCMG equipment / Product profile

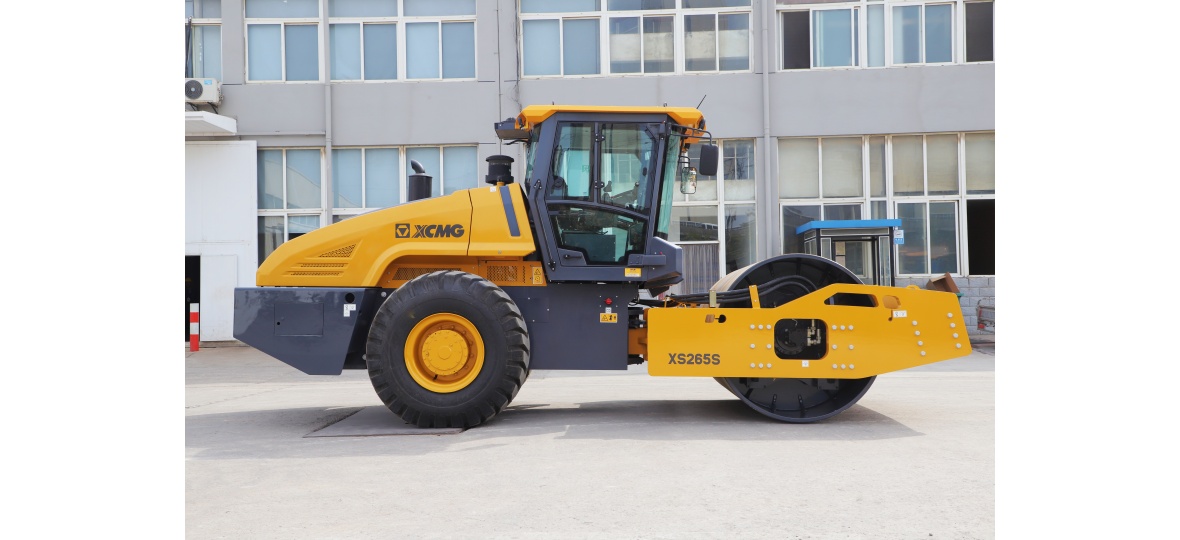

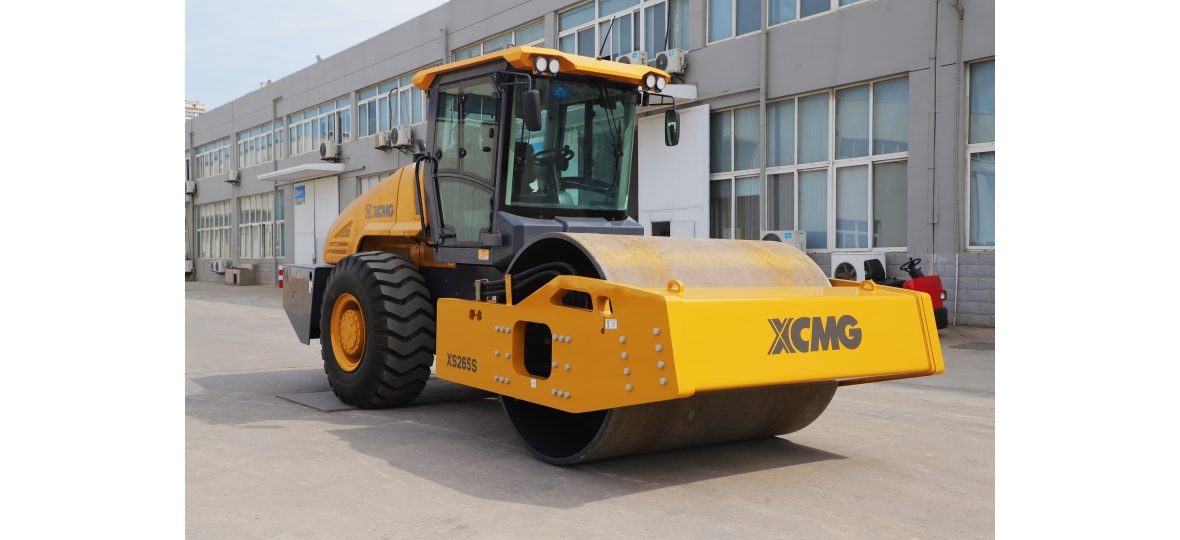

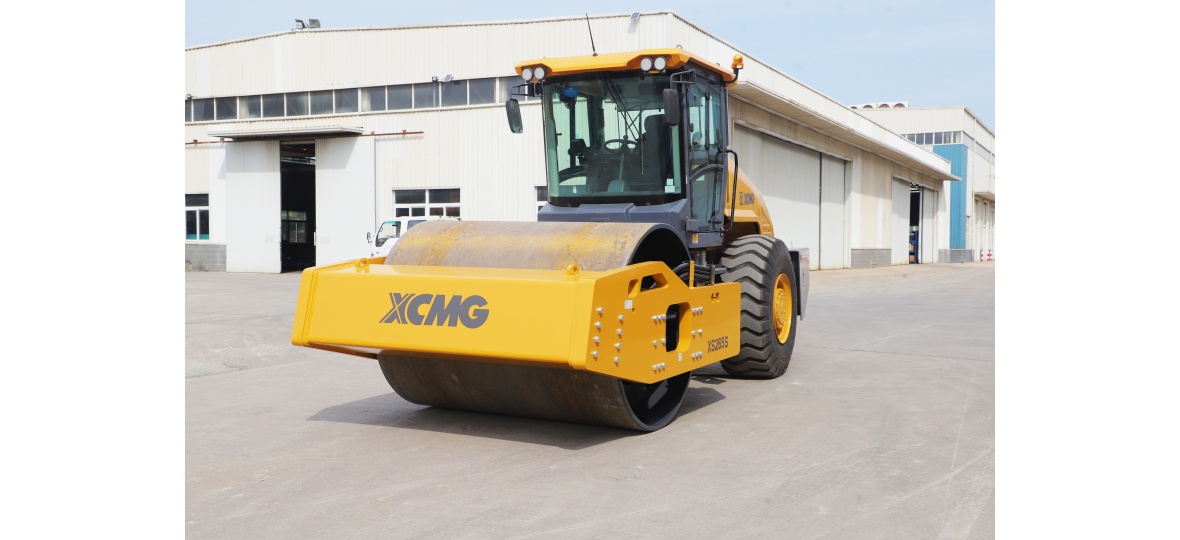

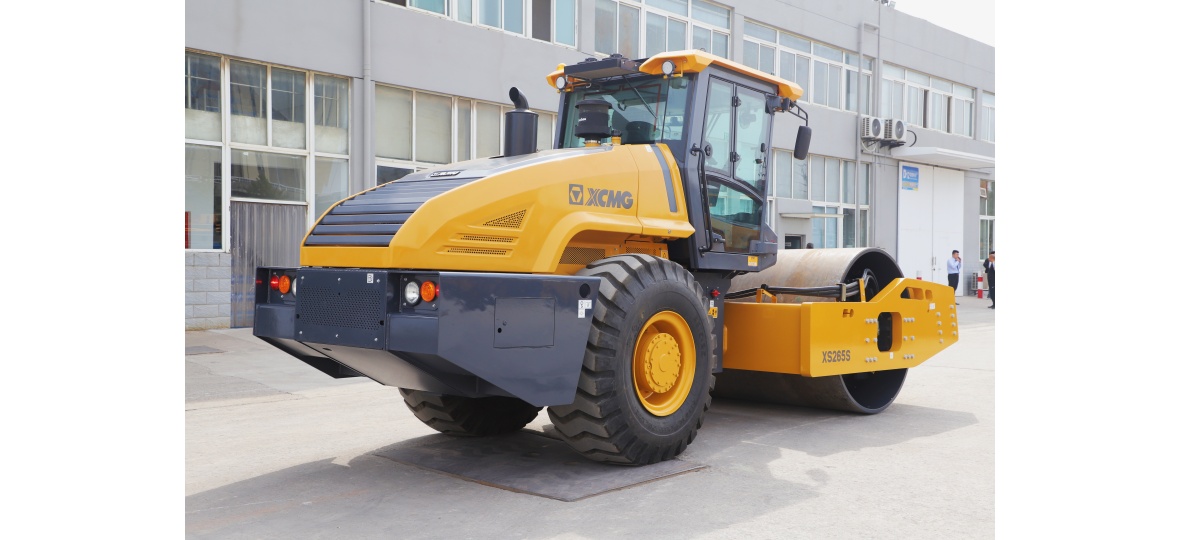

Single Drum Vibratory Roller
XS265S(XS265SPD)
XCMG XS265S(XS265SPD) — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight26000(XS265S) /26800(XS265SPD) kg
Working width2170 mm
Vibration frequency27/32 Hz
Rated power164 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS265S(XS265SPD) — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 26000(XS265S) /26800(XS265SPD) kg · Working width: 2170 mm · Vibration frequency: 27/32 Hz · Rated power: 164 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XS265S vibratory roller is a kind of heavy type self-propelled vibratory roller, mainly applicable for compaction work of base layer, subbase layer of different materials and filling projects. lt is an ideal choice for compacting high grade highway, airports, ports, dams and industrial construction sites.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | — |
| Rated power | 164 | kW |
| Emission | EU Stage Ⅲ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rated speed | 2200 | r/min |
| Operating Weight | 26000(XS265S) /26800(XS265SPD) | kg |
| Working speed | 0-10.6(XS265) /0-11.2(XS265PD) | km/h |
| Gradeability | 50 | % |
| Vibration frequency | 27/32 | Hz |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 2170 | mm |
| Dimensions | 6,990 x 2,470 x 3,260 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Brochure
Brochure
File size: 4.8 MiB
Linked by the official product page
