XCMG / XS265EP
XCMG equipment / Product profile

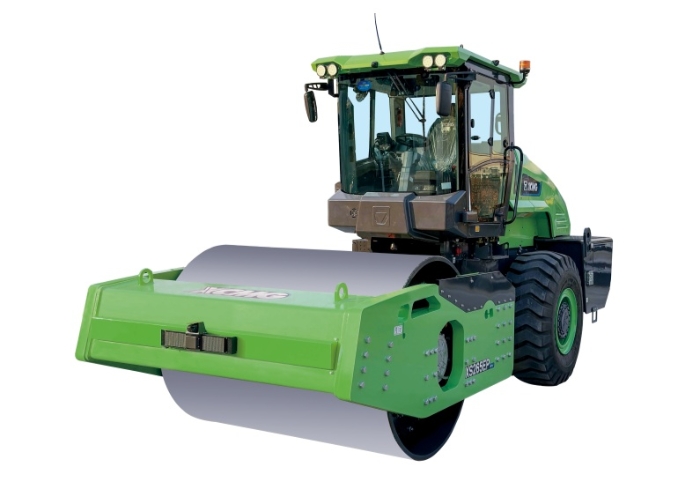

New Energy Roller
XS265EP
XCMG XS265EP — New Energy Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight26000 kg
Vibratory Drum Diameter × Width1600×2170 mm
Vibration Frequency28/33 Hz
Static Linear Load755 N/cm
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS265EP — New Energy Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 26000 kg · Vibratory Drum Diameter × Width: 1600×2170 mm · Vibration Frequency: 28/33 Hz · Static Linear Load: 755 N/cm
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XS265EP self-propelled vibratory roller is a high-performance machine designed for super heavy applications. This new energy vehicle is powered by batteries with zero carbon emissions. It is mainly applicable for compaction of base layer, subbase layer and fill of various materials. It is an ideal compaction equipment for high-grade highways, airports, ports, dams and industrial construction sites. The roller is suitable for altitude ≤4000m, and ambient temperature -15℃～+45℃.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating Weight | 26000 | kg |
| Static Linear Load | 755 | N/cm |
| Vibration Frequency | 28/33 | Hz |
| Amplitude | 2.05/1.05 | mm |
| Centrifugal Force | 435/315 | kN |
| Travel Speed | 0～10.9 | km/h |
| Theoretical Gradeability | 40 | % |
| Steering Angle | ±33 | ° |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Vibratory Drum Diameter × Width | 1600×2170 | mm |
| Ground Clearance | 462.5 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Power Battery | 465.99 | kWh |
| Voltage | 579.6 | V |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
