XCMG / XS225H
XCMG equipment / Product profile

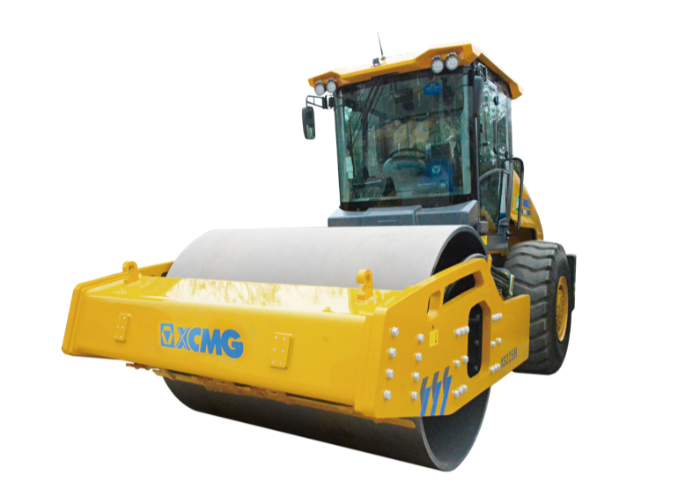

Single Drum Vibratory Roller
XS225H
XCMG XS225H — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight22000 kg
Working width2130 mm
Vibration frequency28/33 Hz
Rated power147 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS225H — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 22000 kg · Working width: 2130 mm · Vibration frequency: 28/33 Hz · Rated power: 147 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XS225H vibratory roller is a highly efficient and en-ergy-saving super heavy machinery driven single drum vibratory roller independently developed by XCMG Construction Machinery Co., Ltd. This is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large proj-ects. It is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial construction sites
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Shangchai | — |
| Rated power | 147 | kW |
| Emission | Stage Ⅲ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rated speed | 2200 | r/min |
| Operating Weight | 22000 | kg |
| Working speed | 0-5/0-8 | km/h |
| Gradeability | 44 | % |
| Vibration frequency | 28/33 | Hz |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 2130 | mm |
| Dimensions | 7,000 x 2,470 x 3,260 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Roller_XS225H_Shangchai_China Stage Ⅲ_EN_20251230
File size: 6.2 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
