XCMG / XS163J
XCMG equipment / Product profile

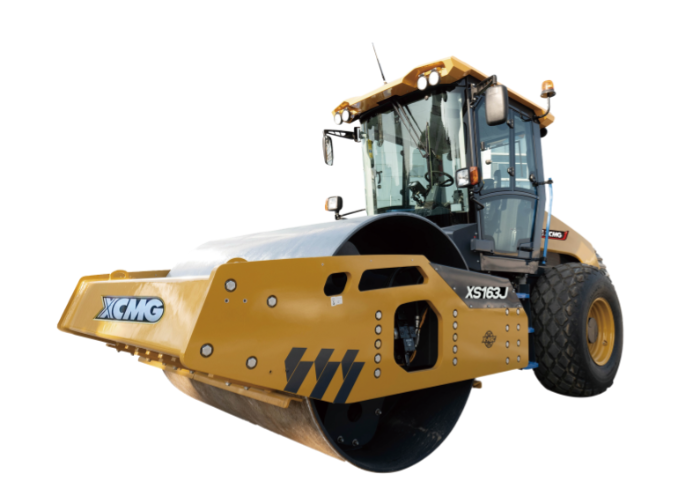

Single Drum Vibratory Roller
XS163J
XCMG XS163J — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight16000 kg
Working width2130 mm
Vibration frequency28/33 Hz
Rated power103 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS163J — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 16000 kg · Working width: 2130 mm · Vibration frequency: 28/33 Hz · Rated power: 103 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XS163J is suitable to the compaction operation ofpebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large projects. lt is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial constructionsites.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Shangchai | — |
| Rated power | 103 | kW |
| Emission | Stage Ⅱ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rated speed | 1800 | r/min |
| Operating Weight | 16000 | kg |
| Working speed | 2.93/5.76/12.2 | km/h |
| Gradeability | 30 | % |
| Vibration frequency | 28/33 | Hz |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 2130 | mm |
| Dimensions | 6,150 x 2,300 x 3,200 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Brochure
Brochure
File size: 5.0 MiB
Linked by the official product page
Specification sheet
Datasheet_Roller_XS163J_Shangchai_China Stage Ⅱ _EN_20260105
File size: 0.9 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
