XCMG / XS163
XCMG equipment / Product profile

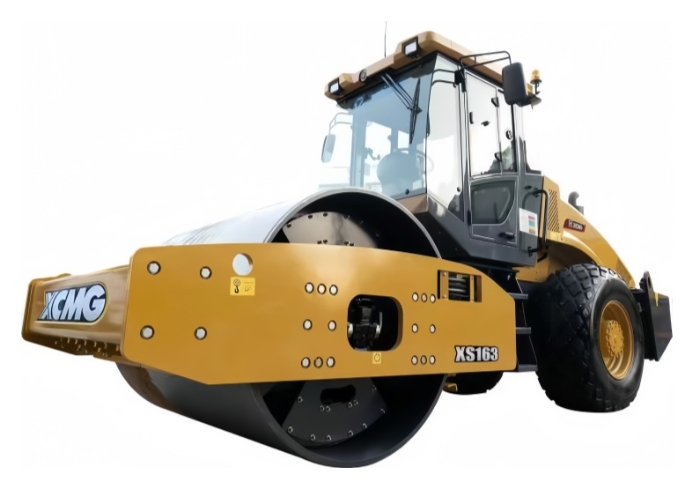

Single Drum Vibratory Roller
XS163
XCMG XS163 — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight16000 kg
Working width2130 mm
Vibration frequency30 Hz
Rated power125 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS163 — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 16000 kg · Working width: 2130 mm · Vibration frequency: 30 Hz · Rated power: 125 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XS163 is heavy duty vibratory roller,mainly applica-ble for compacting operation of base layer,sub-base layer of different materials and filling en-gineering.It is an ideal equipment for constructinghigh grade highway,airport,port,dam and industri-al construction sites.This machine is powered byDongfeng Cummins high-power engine,matchingXCMG drive axle and hydraulic drive system,com-petent to work in most construction sites.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | — |
| Rated power | 125 | kW |
| Emission | EU Stage Ⅱ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rated speed | 2200 | r/min |
| Operating Weight | 16000 | kg |
| Working speed | 0～4.2；0～11.5； | km/h |
| Gradeability | 50 | % |
| Vibration frequency | 30 | Hz |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 2130 | mm |
| Dimensions | 6,200 x 2,300 x 3,200 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Brochure
Brochure
File size: 4.3 MiB
Linked by the official product page
Specification sheet
Datasheet_Roller_XS163_Cummins_China Stage Ⅱ_EN_20260105
File size: 1.0 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
