XCMG / XS143
XCMG equipment / Product profile

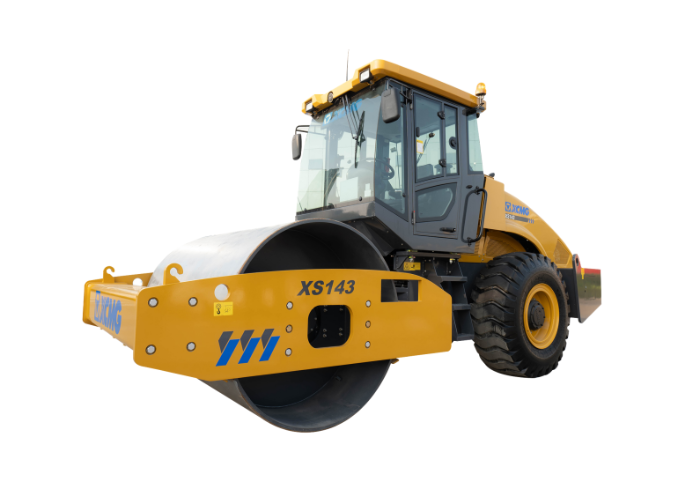

Single Drum Vibratory Roller
XS143
XCMG XS143 — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight14000 kg
Working width2130 mm
Vibration frequency30 Hz
Rated power125 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS143 — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 14000 kg · Working width: 2130 mm · Vibration frequency: 30 Hz · Rated power: 125 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XS143/XS143PD is a kind of medium vibratory roller, mainly applicable for compacting operation of base layer, subbase layer of different materials,and filling engineering. lt is an ideal choice for constructing high grade highway, airport, port,damand industrial construction sites. This machineadopts the high power Dongfeng Cummins engine, XCMG special drive axle for road roller and its hydraulic drive system can better meet the construction requirements of all regions.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | — |
| Rated power | 125 | kW |
| Emission | EU Stage Ⅱ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rated speed | 2200 | r/min |
| Operating Weight | 14000 | kg |
| Working speed | 0~5.3/0~10.8 | km/h |
| Gradeability | 40 | % |
| Vibration frequency | 30 | Hz |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 2130 | mm |
| Dimensions | 6,200 x 2,300 x 3,200 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Roller_XS143_Cummins_China Stage Ⅱ_EN_20260105
File size: 0.9 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
