XCMG / XS135T
XCMG equipment / Product profile

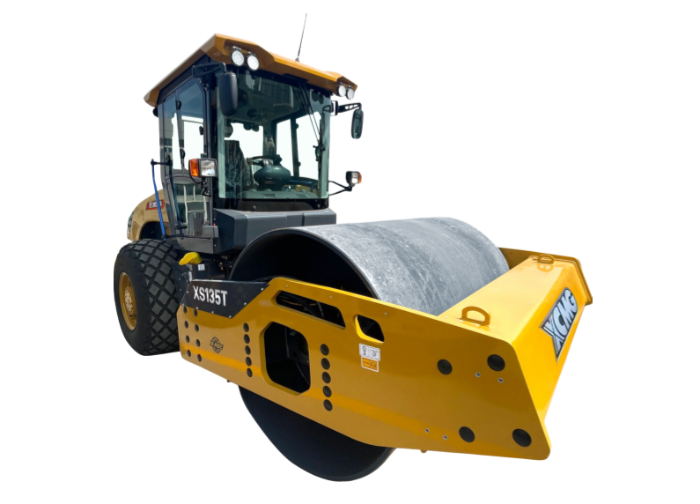

Single Drum Vibratory Roller
XS135T
XCMG XS135T — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight13300 kg
Working width2130 mm
Vibration frequency30/35 Hz
Rated power115 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS135T — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 13300 kg · Working width: 2130 mm · Vibration frequency: 30/35 Hz · Rated power: 115 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XS135T is a heavy-type, self-propelled, full hydraulic dual drive single drum vibratory roller special designed for Turkey market. This product fulfills the requirements of the European Stage V emission standards. Featuring high excitation force, high compaction efficiency and good compaction quality, it is widely used in compaction work on base layer, sub-base layer and rock fill for roads, railways, airports, harbors, dams and industrial construction sites. Applicable altitude ≤3000 m，Applicable environment temperature-10℃～+45℃.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | — |
| Rated power | 115 | kW |
| Emission | EU Stage Ⅴ / T4F | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rated speed | 2200 | r/min |
| Operating Weight | 13300 | kg |
| Working speed | 0-11.7 | km/h |
| Gradeability | 47 | % |
| Vibration frequency | 30/35 | Hz |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 2130 | mm |
| Dimensions | 5,990 x 2,300 x 2,990 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Brochure
Brochure
File size: 5.6 MiB
Linked by the official product page
Specification sheet
Datasheet_Roller_XS135T_Cummins_EU Stage Ⅴ(US Stage T4F)_EN_20260105
File size: 1.0 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
