XCMG / XS125(XS125PD)Stage Ⅱ
XCMG equipment / Product profile
Single Drum Vibratory Roller
XS125(XS125PD)Stage Ⅱ
XCMG XS125(XS125PD)Stage Ⅱ — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight12600 kg
Working width2130 mm
Vibration frequency30/35 Hz
Rated power93 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS125(XS125PD)Stage Ⅱ — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 12600 kg · Working width: 2130 mm · Vibration frequency: 30/35 Hz · Rated power: 93 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)

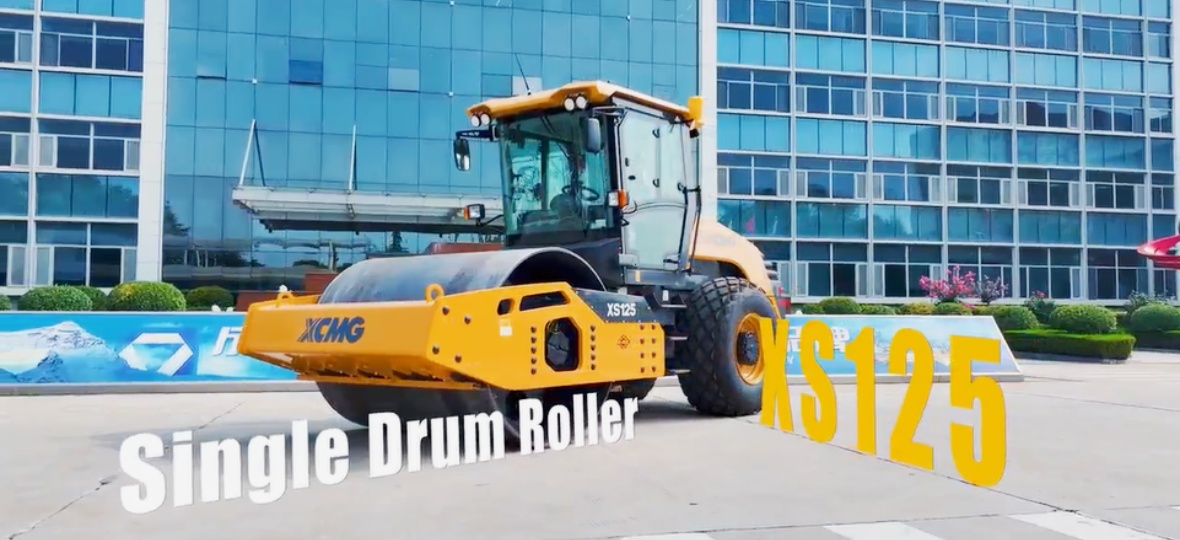

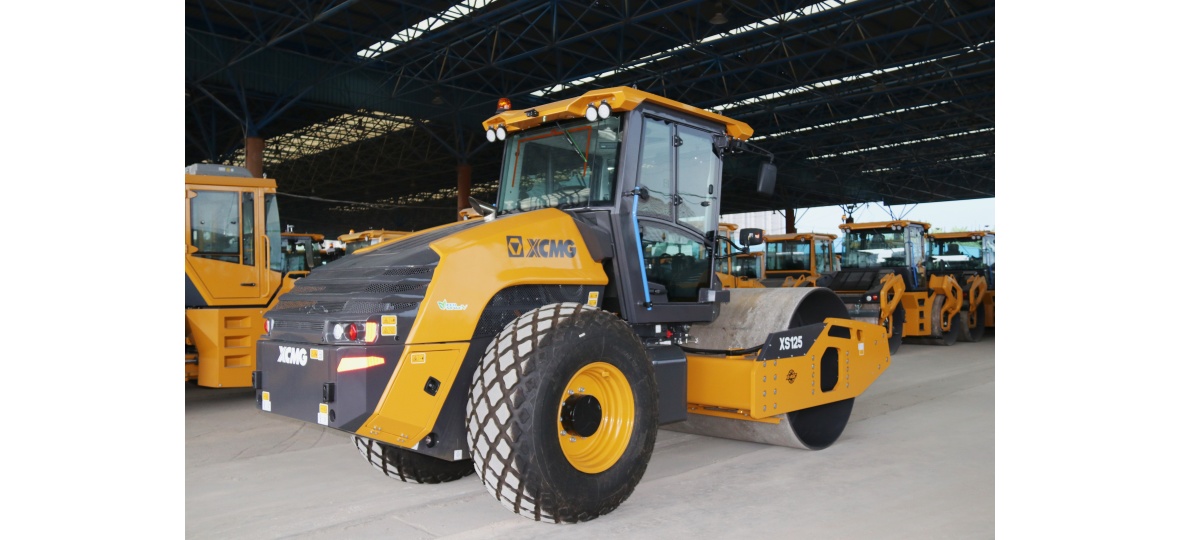

XS125 / XS125PD is a heavy-type, self-propelled, full hydraulic double drive single drum vibratory roller. Featuring large exciting force, high compaction efficiency and good compaction quality, it is widely used in compaction work on base layer, sub-base layer and rock fill for roads, railways, airports, harbors, dams and industrial construction sites. Applicable altitude ≤3000 m，Applicable environment temperature-10℃～+45℃.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Dongkang | — |
| Rated power | 93 | kW |
| Emission | EU Stage II | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rated speed | 2200 | r/min |
| Operating Weight | 12600 | kg |
| Working speed | 5.2；6.2；8.2；11； | km/h |
| Gradeability | 53 | % |
| Vibration frequency | 30/35 | Hz |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 2130 | mm |
| Dimensions | 6,010x 2,300 x 3,080 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
