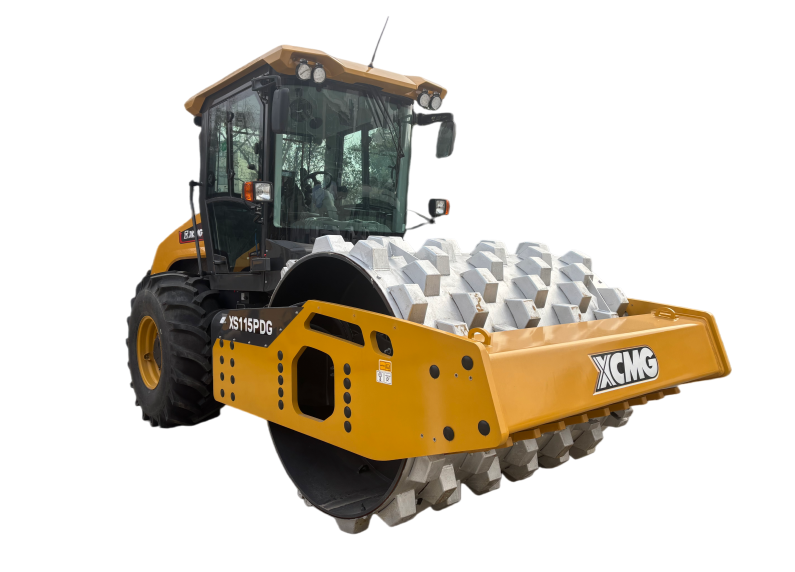

Single Drum Vibratory Roller
XS115PDG
XCMG XS115PDG — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight11500(XS115G) / 13000(XS115PDG) kg
Working width2130 mm
Vibration frequency30/35 Hz
Rated power115 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XS115PDG — Single Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 11500(XS115G) / 13000(XS115PDG) kg · Working width: 2130 mm · Vibration frequency: 30/35 Hz · Rated power: 115 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XS115PDG single drum vibratory roller is a double pump driven heavy duty, self-propelled, single drum, full hydraulic double drive single drum vibratory roller. The product meets the drain requirements of Stage V in Europe and T4f in North America. It has the characteristics of strong driving capacity, large exciting force, high compaction efficiency, good compaction quality, etc. It is widely used for compaction operation of foundation layer, sub-foundation layer and rock fill in highways, railways, airports, ports, dams and industrial construction sites.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | — |
| Rated power | 115 | kW |
| Emission | EU Stage V/T4F | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Rated speed | 2200 | r/min |
| Operating Weight | 11500(XS115G) / 13000(XS115PDG) | kg |
| Working speed | 0～11.00(XS115G) / 0～11.85(XS115PDG) | km/h |
| Gradeability | 65(XS115G) / 62(XS115PDG) | % |
| Vibration frequency | 30/35 | Hz |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 2130 | mm |
| Dimensions | 5,990 x 2,300 x 3,150 | mm |
