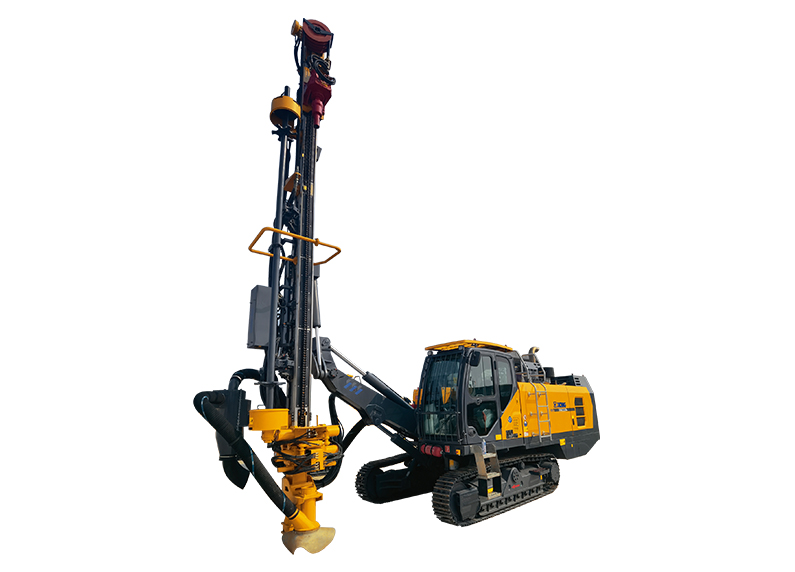

Surface Down-The-Hole Drill Rig
XQZ229
XCMG XQZ229 — Surface Down-The-Hole Drill Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Rated power450 kW
Drilling diameterФ152-Ф229 mm
Max. hole depth30 m
EngineVolvo TAD1643VE
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XQZ229 — Surface Down-The-Hole Drill Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Rated power: 450 kW · Drilling diameter: Ф152-Ф229 mm · Max. hole depth: 30 m · Engine: Volvo TAD1643VE
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XQZ229 surface down-the-hole drill rig is a large-sized integrated down-the-hole drilling machine mainly developed for open-pit mines, which can complete the drilling of main blasting holes and pre-splitting holes. It has the characteristics of large drilling diameter, high drilling efficiency, wide application range, etc.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Drilling diameter | Ф152-Ф229 | mm |
| Max. hole depth | 30 | m |
| Air volume | 33 | m³/h |
| Air compressor | Atlas Copco | — |
| Rotary speed | 60 | rpm |
| Weight | 28000 | kg |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 450 | kW |
| Engine | Volvo TAD1643VE | — |
| Emission standard | EU III | — |
| Rotary torque | 6600 | N·m |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Transport dimensions | 12150×2900×3600 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
