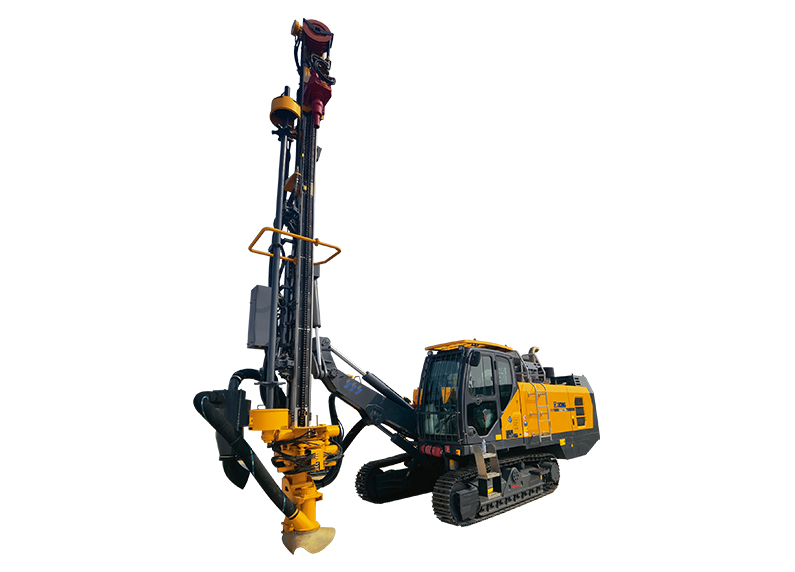

Surface Down-The-Hole Drill Rig
XQZ178
XCMG XQZ178 — Surface Down-The-Hole Drill Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Rated power354 kW
Drilling diameterФ138-Ф178 mm
Max. hole depth36 m
EngineCummins QSZ13-C475
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XQZ178 — Surface Down-The-Hole Drill Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Rated power: 354 kW · Drilling diameter: Ф138-Ф178 mm · Max. hole depth: 36 m · Engine: Cummins QSZ13-C475
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XQZ178 surface down-the-hole drill rig is a large-sized integrated down-the-hole drilling machine mainly developed for open-pit mines, which can complete the drilling of main blasting holes and pre-splitting holes. It has the characteristics of large drilling diameter, high drilling efficiency, wide application range, etc.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Drilling diameter | Ф138-Ф178 | mm |
| Max. hole depth | 36 | m |
| Air volume | 24 | m³/h |
| Air compressor | Atlas Copco | — |
| Rotary speed | 90 | rpm |
| Weight | 24500 | kg |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 354 | kW |
| Engine | Cummins QSZ13-C475 | — |
| Emission standard | CN III | — |
| Rotary torque | 5800 | N·m |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Transport dimensions | 11800×2700×3560 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
