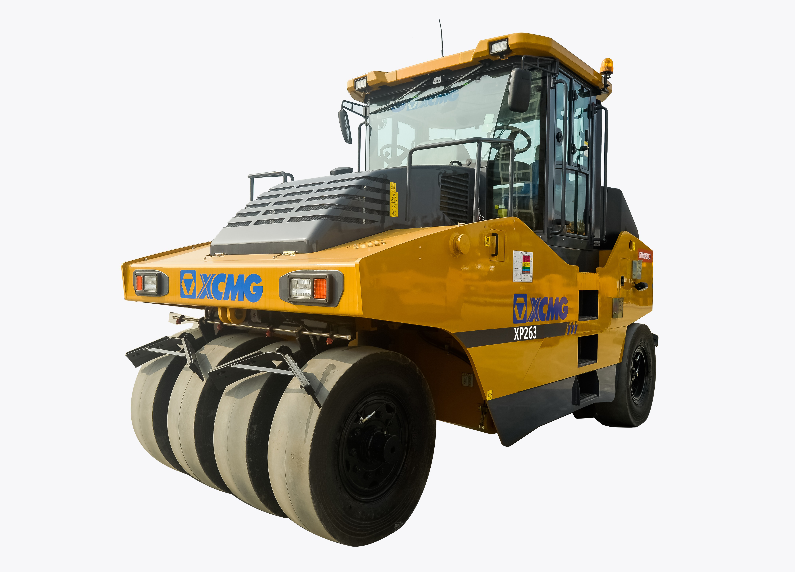

XCMG / XP263
XCMG equipment / Product profile
Pneumatic Roller
XP263
XCMG XP263 — Pneumatic Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight26000 kg
Drum width2360 mm
Rated power132 kW
EngineShangchai
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XP263 — Pneumatic Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 26000 kg · Drum width: 2360 mm · Rated power: 132 kW · Engine: Shangchai
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XP263 pneumatic tire roller is an indispensable equipment for the construction of high grade highway, large-scale foundation rolling and all kinds of filling and compaction. Its unique kneading and compaction performance makesit irreplaceable by other machine models.XP263 is a self-propelled static roller, with efficient compaction ability and excellent compaction performance, applies tocompaction asphalt pavement, base layer, subbase layerand filling.lt is widely used in compaction operations forall kinds of traffic roads, airports, ports, dams and otherlarge engineering, especially for high grade highway pavement.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Shangchai | — |
| Emission | Stage Ⅲ | — |
| Rated power | 132 | kW |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating Weight | 26000 | kg |
| Working speed | 0～8/0～17 | km/h |
| Gradeability | 30 | % |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Dimensions | 4,925 x 2,530 x 3,470 | mm |
| Wheelbase | 3840 | mm |
| Drum width | 2360 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Roller_XP263_Shangchai_China Stage Ⅲ_EN_20260102
File size: 0.9 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
