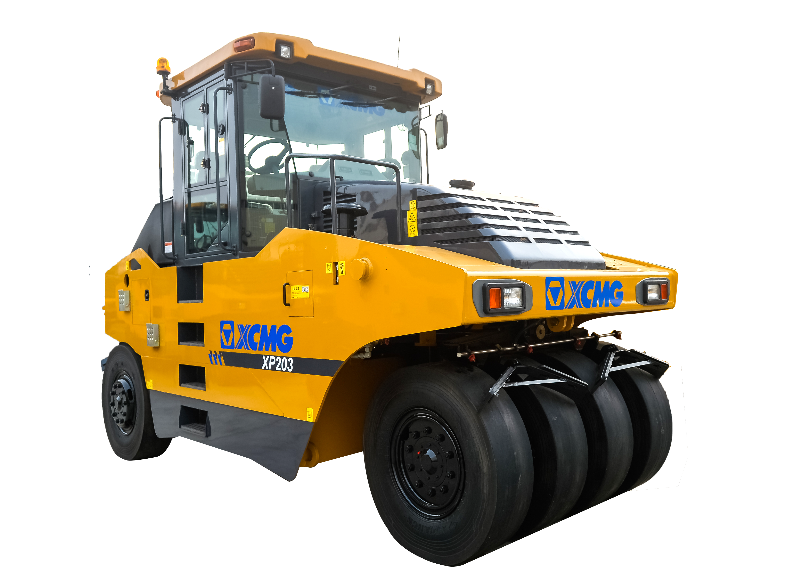

XCMG / XP203
XCMG equipment / Product profile
Pneumatic Roller
XP203
XCMG XP203 — Pneumatic Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight20000 kg
Drum width2055 mm
Rated power86 kW
EngineShangchai
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XP203 — Pneumatic Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 20000 kg · Drum width: 2055 mm · Rated power: 86 kW · Engine: Shangchai
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)

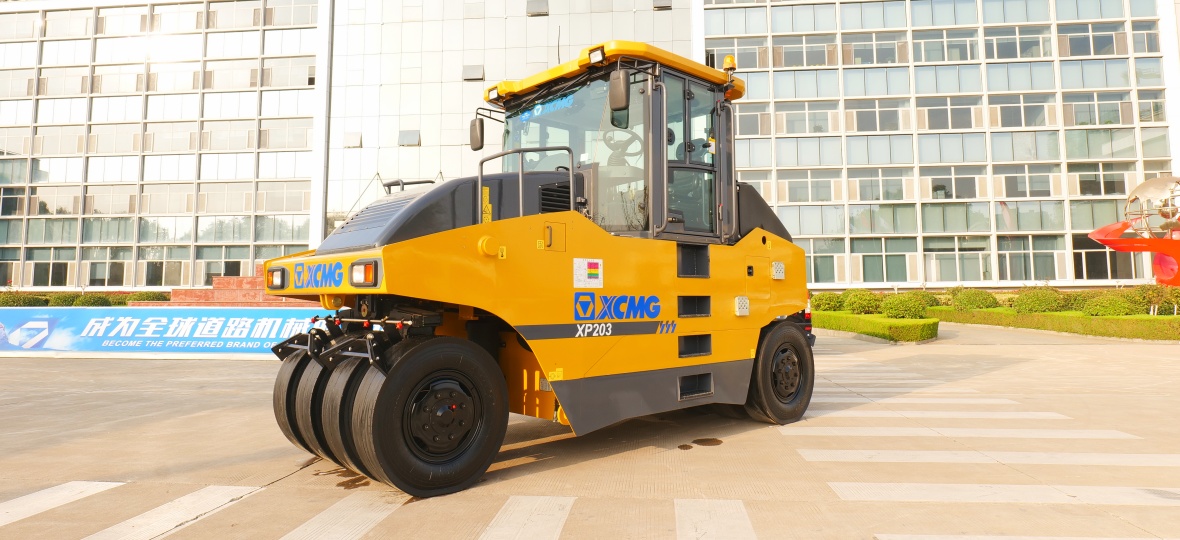

XP203 pneumatic tire roller is an indispensable equipmentfor the construction of high grade highway, large-scalefoundation rolling and all kinds of filling and compaction.Its unique kneading and compaction performance makes it irreplaceable by other machine models. XP203 is a self-propelled static roller, with efficient compaction ability and excellent compaction perfommance, applies tocompaction asphalt pavement, base layer, subbase layerand filling. lt is widely used in compaction operations forall kinds of traffic roads, airports, ports, dams and other large engineering, specially for high grade highway pavement.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Shangchai | — |
| Emission | Stage Ⅱ | — |
| Rated power | 86 | kW |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating Weight | 20000 | kg |
| Working speed | 0～4.5;0～8.7;0~18.4 / 0~4.5;0~8.7 | km/h |
| Gradeability | 30 | % |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Dimensions | 4,780 x 2,232 x 3,340 | mm |
| Wheelbase | 3700 | mm |
| Drum width | 2055 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Roller_XP203_Shangchai_China Stage Ⅱ_EN_20260102
File size: 0.9 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
