XCMG / XMZ90
XCMG equipment / Product profile

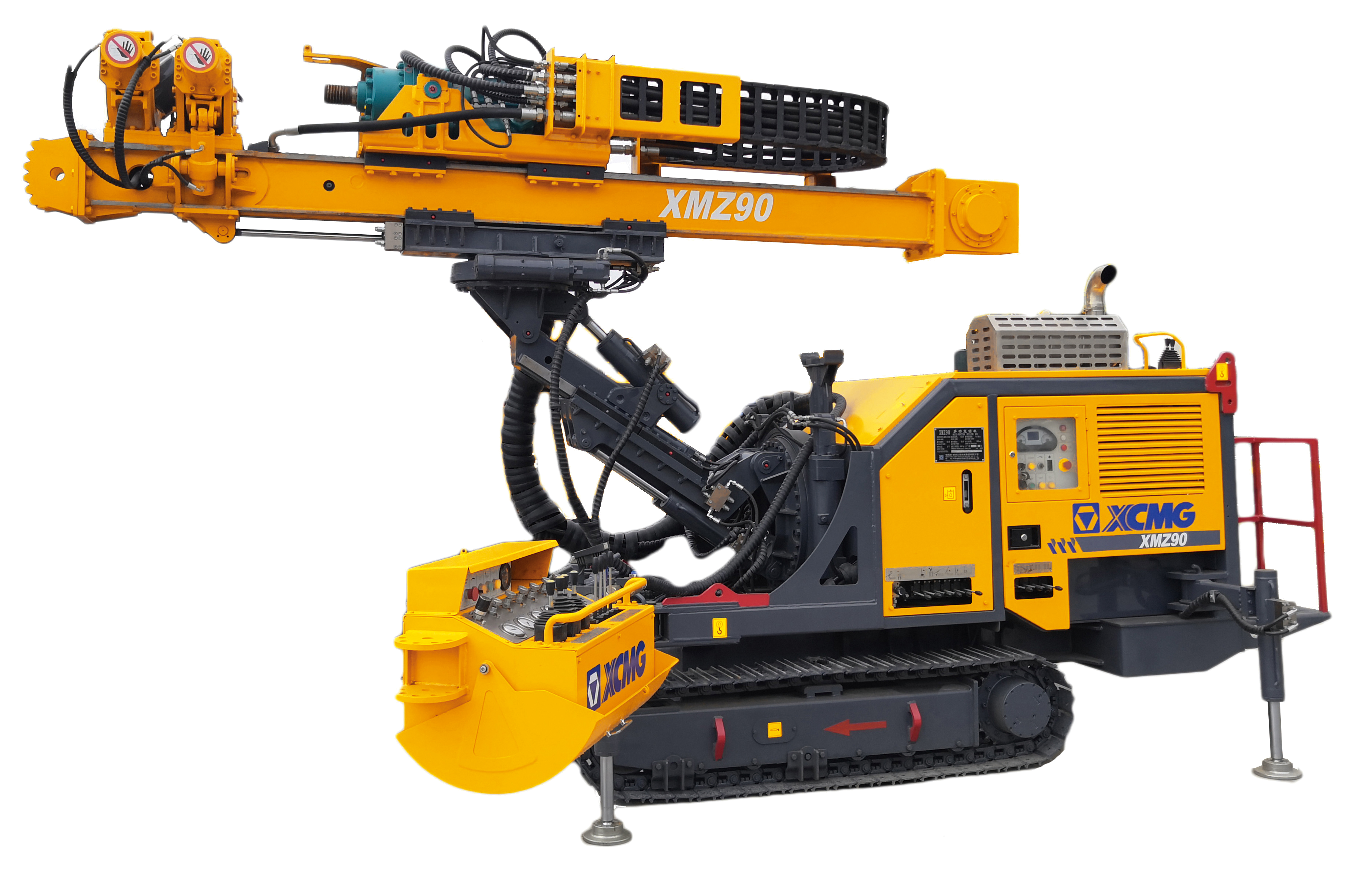

Multifunctional Drilling Rig
XMZ90
XCMG XMZ90 — Multifunctional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. torque（multiple options）9600/4800 N·m
Rated power93 kW
Max. feed/pull-out force50 kN
Max. rotate speed （multiple options）48/95 r/min
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XMZ90 — Multifunctional Drilling Rig. Review published parameters and request the configuration for your destination market from XEMACH.
Max. torque（multiple options）: 9600/4800 N·m · Rated power: 93 kW · Max. feed/pull-out force: 50 kN · Max. rotate speed （multiple options）: 48/95 r/min
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XMZ200 multifunctional drilling rig is mainly used in the construction such as pile anchor support for foundation and landslide, geological prospecting/pipe grouting of tunnel, tunnel rescue hole drilling, micro pile construction. The wireless remote control is used to control the drilling and walking, and the operator can freely choose the operating position to ensure the best view. Modular design of drill mast, clamp, rotary drive assembly, etc., and each module is rich in configuration to meet the special needs of different clients.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 93 | kW |
| Max. torque（multiple options） | 9600/4800 | N·m |
| Engine model | QSF3.8 | — |
| Emission standard | EU III | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. feed/pull-out force | 50 | kN |
| Max. rotate speed （multiple options） | 48/95 | r/min |
| Feed stroke | 2000 | mm |
| Clamping range （multiple options） | Ф50-Ф225 | mm |
| Weight | 8 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Transport dimensions | 5210×1500×2650 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
