XCMG / XMR603
XCMG equipment / Product profile

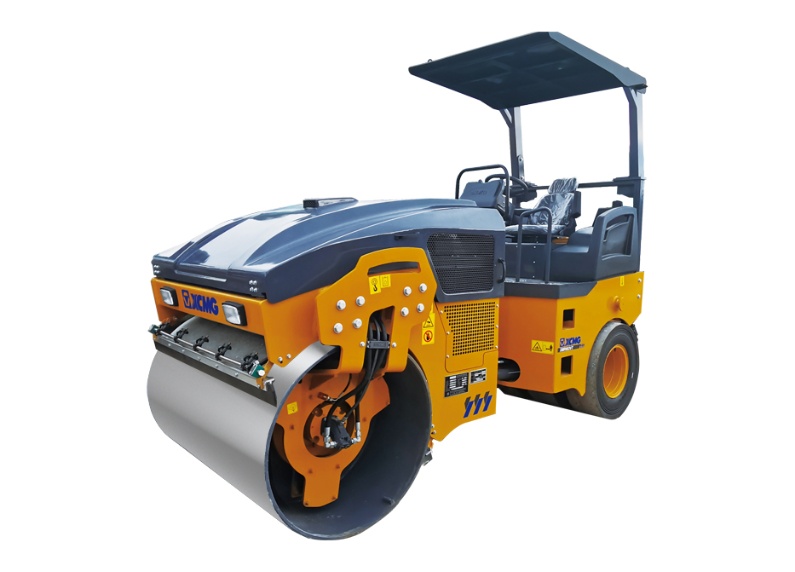

Double Drum Vibratory Roller
XMR603
XCMG XMR603 — Double Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating weight6000 kg
Drum width1520 mm
Vibration frequency55/48 Hz
Rated power59 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XMR603 — Double Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating weight: 6000 kg · Drum width: 1520 mm · Vibration frequency: 55/48 Hz · Rated power: 59 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XMR603 vibratory roller is specially designed formunicipal roads and medium engineering custom-ers.The compact machine structure and high flexi-bility makes it the ideal machinery for municipalmaintenance,asphalt wearing course constructionand building works of highway management andmaintenance;Its features include all-wheel drive,two speeds, double amplitude, double frequency,interval sprinkling and automatic vibration.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 6000 | kg |
| Static linear load | 174/213 | N/cm |
| Vibration frequency | 55/48 | Hz |
| Excitation force | 70/45 | kN |
| Theoretical gradeability | 37 | % |
| Model | 4B5-80C31 | — |
| Rated speed | 2400 | r/min |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Drum width | 1520 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 59 | kW |
| Emission | EU Stage Ⅲ | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Roller_XMR603_Quanchai_EU Stage Ⅲ _EN_20260106
File size: 4.9 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
