XCMG / XM505
XCMG equipment / Product profile

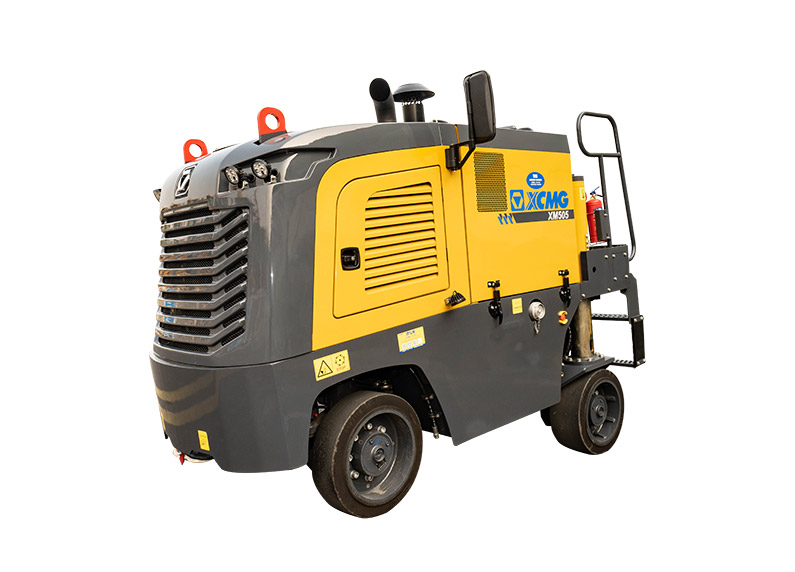

Mini Milling Machine
XM505
XCMG XM505 — Mini Milling Machine. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power92 kW
EngineShangchai
EmissionChina Stage Ⅲ
Weight in transportation state5650 kg
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XM505 — Mini Milling Machine. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power: 92 kW · Engine: Shangchai · Emission: China Stage Ⅲ · Weight in transportation state: 5650 kg
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XM505 pavement milling machine is a maintenance and construc-tion machine for asphalt pavement,and it is mainly used for mu-nicipal highway maintenance and can be used as an auxiliary ma-chine for large milling machine construction.Its functions arelisted as follows:small area excavation and renovation of asphaltconcrete pavement such as highways,urban roads,airports,freight yards and parking lots;Removal of upheavals,oil waves,reticulated lines,ruts,etc;Roughening of cement pavement andmilling of staggered surface;edge milling and planing along thewell cover.If a hydraulic pick is selected,it can realize the functionof pavement breaking;The rumble wheel can be optionally in-stalled for roadside rumble strip milling and planing.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Shangchai | — |
| Rated Power | 92 | kW |
| Emission | China Stage Ⅲ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Weight in transportation state | 5650 | kg |
| Weight in work state | 5900 | kg |
| Max.Milling Depth | 180 | mm |
| Number of cutters | 54 | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Milling width | 500 | mm |
| Transport Dimensions / L x W x H | 3,125 x1,715x2,200 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Milling Machine_XM505_Shangchai_China Stage Ⅲ_EN_20260106
File size: 26.3 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
Specification sheet
Datasheet_Milling Machine_XM505Ⅱ_Cummind_China Stage Ⅲ_EN_20260106
File size: 31.1 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
