XCMG / XM2005KⅢ
XCMG equipment / Product profile

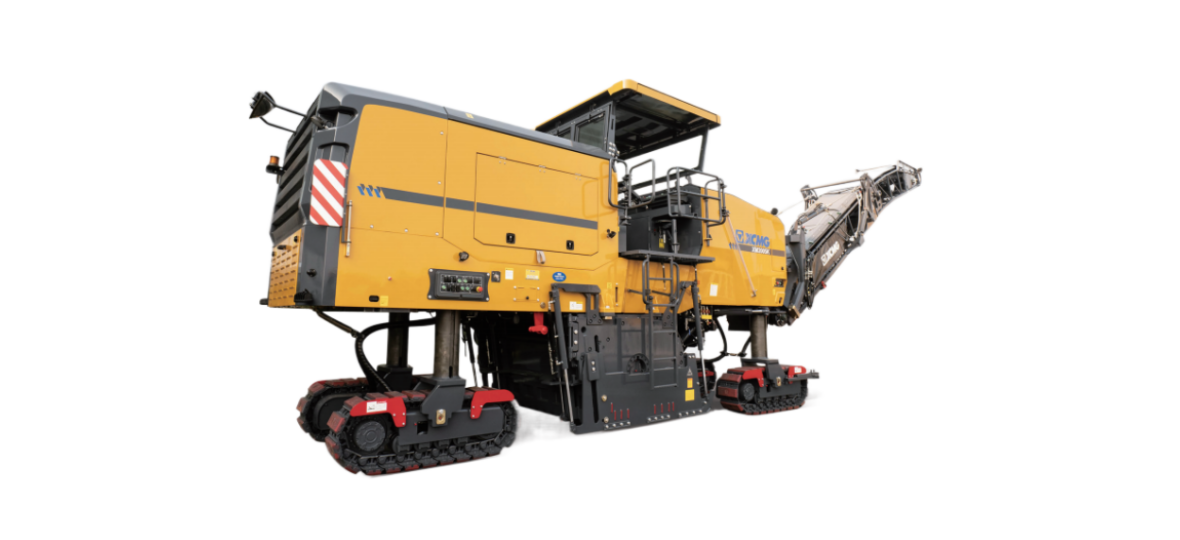

Large Milling Machine
XM2005KⅢ
XCMG XM2005KⅢ — Large Milling Machine. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power563 kW
EngineCummins
EmissionCN stage Ⅲ
Weight in transportation state28500 kg
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XM2005KⅢ — Large Milling Machine. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power: 563 kW · Engine: Cummins · Emission: CN stage Ⅲ · Weight in transportation state: 28500 kg
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XM2005Klll Road milling machine is asphalt concrete pavement maintenance construction machinery, which is mainlyused for large-area excavation and renovation of asphalt con.crete surface layer such as highway, urban road, airport, freight yard and parking lot. it is also used for cleaning upheaval, bitumen waves, netting cracks, wheel tracks as well as excavating groove, fine cutting of concrete pavement and milling of misaligned layers.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | — |
| Rated Power | 563 | kW |
| Emission | CN stage Ⅲ | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Weight in transportation state | 28500 | kg |
| Weight in work state | 30500 | kg |
| Max.Milling Depth | 330 | mm |
| Number of cutters | 146 | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Milling width | 2000 | mm |
| Transport Dimensions / L x W x H | 12641 x 2712 x 3000 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
Request technical documents ↗Related models
XEMACH / XCMG
Request a quote ↗XM2005KⅢ
Tell us the destination, application and preferred configuration. Our machinery team will confirm availability and export details.
