XCMG / XLY103TB
XCMG equipment / Product profile

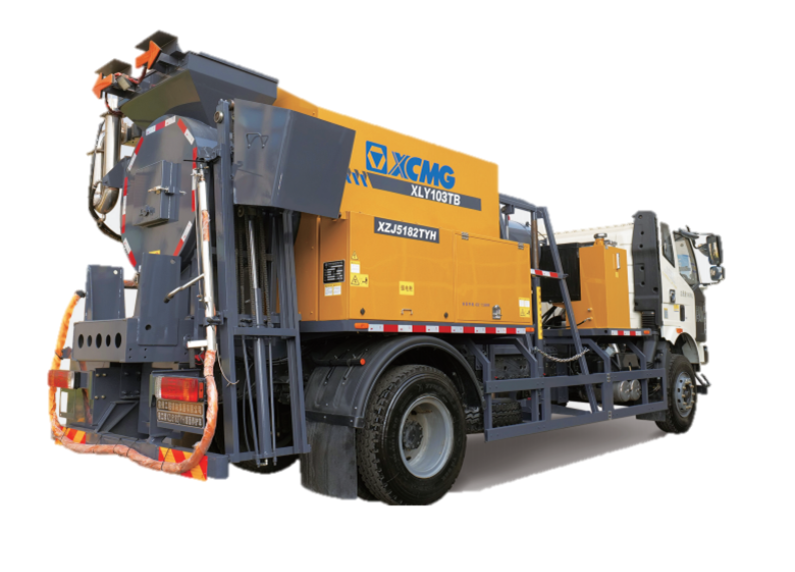

Pavement Maintenance Vehicle
XLY103TB
XCMG XLY103TB — Pavement Maintenance Vehicle. Review published parameters and request the configuration for your destination market from XEMACH.
Engine power/speed162/2500 kW/r/min
Feeding modeHydraulic automation
Engine typeYC6J220-33
Maximum traveling speed95 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XLY103TB — Pavement Maintenance Vehicle. Review published parameters and request the configuration for your destination market from XEMACH.
Engine power/speed: 162/2500 kW/r/min · Feeding mode: Hydraulic automation · Engine type: YC6J220-33 · Maximum traveling speed: 95 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XLY103TB Pavement maintenance vehicle is applicable for rapid repair of pit diseases on asphalt pavement on highway, national and provincial trunk roads and municipal roads, and can meet various construction process requirements such as rapid heating of cold finished product mixture, regenerative heating of milling old materials, field frying of asphalt mixture and in-place recycling of pavement. In addition, the vehicle is characterized by multiple function in one machine, easy operation and high reliability.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Feeding mode | Hydraulic automation | — |
| Maximum traveling speed | 95 | km/h |
| Curb weight | 13750/15120 (with heating wall) | kg |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine type | YC6J220-33 | — |
| Engine power/speed | 162/2500 | kW/r/min |
| Emission | China Stage Ⅲ | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Overall dimension | 8175×2500×3440 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Powder Binder Spreader_XLY103TB_1m³_EN_20260106
File size: 16.7 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
