XCMG / XL2503
XCMG equipment / Product profile

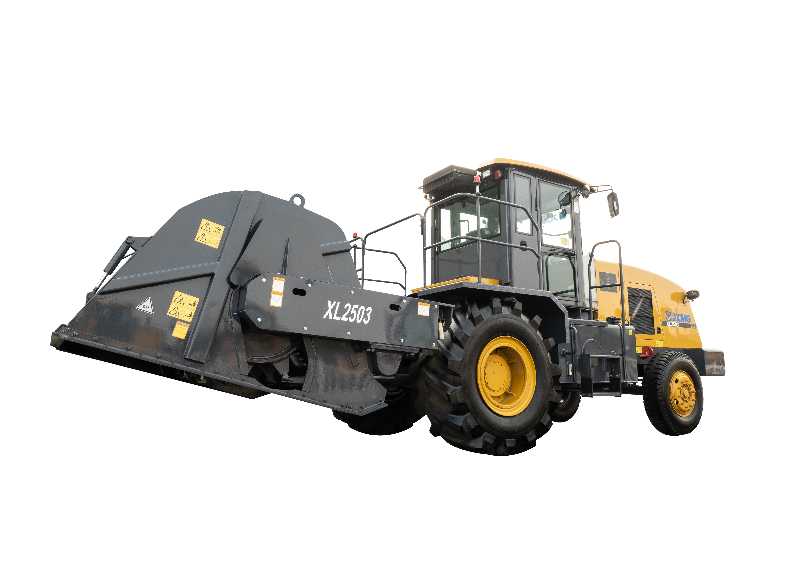

Soil Stabilizer
XL2503
XCMG XL2503 — Soil Stabilizer. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power316 kW
Engine ModelWP12G430E300
Engine Speed1900 rpm
Working Width2500 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XL2503 — Soil Stabilizer. Review published parameters and request the configuration for your destination market from XEMACH.
Rated Power: 316 kW · Engine Model: WP12G430E300 · Engine Speed: 1900 rpm · Working Width: 2500 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XL2503 stabilized soil mixer is suitable for in-placemixing of stabilized soil on the base course and subgrade course of high ways, urban roads squares, wharfs, parking lots and other projects. lt can mix lime-ash soil, lime-ash stabilized aggregate and water-stabilized gravel at various proportions on the spot.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine Model | WP12G430E300 | — |
| Rated Power | 316 | kW |
| Engine Speed | 1900 | rpm |
| Emission | China Stage Ⅲ | / |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working Width | 2500 | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Maximum Milling Depth | 0-400 | mm |
| Tool Spacing | Not published | mm |
| Number of Picks | 184 | pcs |
| Diameter Mixing Rotor/with picks | 1280 | mm |
| Machine Weight | 16500 | kg |
| Mechanical | 8740x3060x3450 | L×W×H/mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Cold Recycler_XL2503_Weichai_China Stage Ⅲ _EN_2026017
File size: 21.6 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
