XCMG / XH235
XCMG equipment / Product profile
Backfill Compactor
XH235

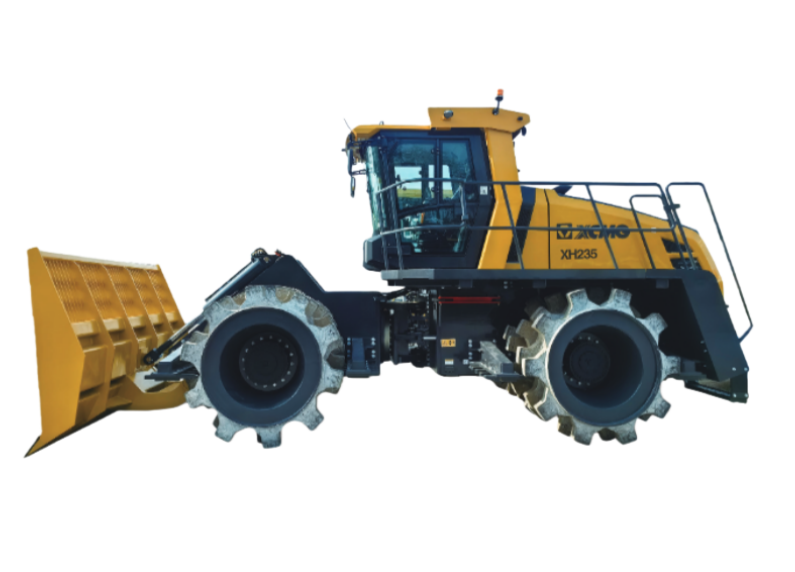

XCMG XH235 — Backfill Compactor. Review published parameters and request the configuration for your destination market from XEMACH.
Operating weight24800 kg
Working width3820 mm
Rated power194/2200 kW/rpm
EngineCummins
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XH235 — Backfill Compactor. Review published parameters and request the configuration for your destination market from XEMACH.
Operating weight: 24800 kg · Working width: 3820 mm · Rated power: 194/2200 kW/rpm · Engine: Cummins
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XH235 Landfill Compactor is mainly used for bull-dozing and compaction of solid fill in landfill to reduce the land occupation of landfill and prolong the service life of landfill. Laws and regulation: implementing the regulations of Q/XGDL 22006-2013: Enterprise executive product standard directory and laws and regulations directory. Product shall be designed, produced, manufactured and accepted in accordance with the standard JB/T 10668-2018 Sanitary Landfill Compactor.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 24800 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working width | 3820 | mm |
| Overall dimensions | 8365×3820×3850 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Cummins | — |
| Emission | EU Stage III | — |
| Rated power | 194/2200 | kW/rpm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Roller_XH235_Cummins_EU Stage Ⅲ_EN_20260302
File size: 1.8 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
