XCMG / XGS18K
XCMG equipment / Product profile

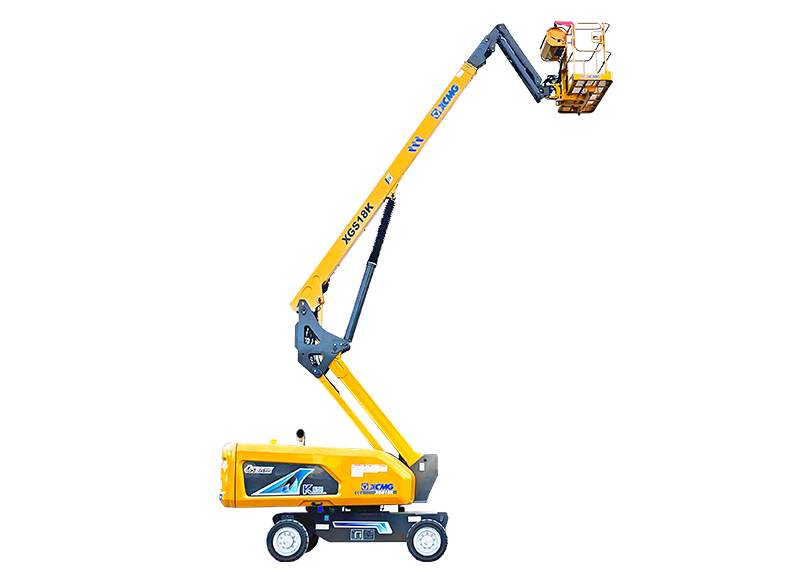

Engine Powered-Telescopic Boom Lift
XGS18K
XCMG XGS18K — Engine Powered-Telescopic Boom Lift. Review published parameters and request the configuration for your destination market from XEMACH.
Max. Working Height18.28m m
Max. Outreach12.05m m
Max. Lift Capacity300 kg kg
Max. Gradeability45% (24°) %
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XGS18K — Engine Powered-Telescopic Boom Lift. Review published parameters and request the configuration for your destination market from XEMACH.
Max. Working Height: 18.28m m · Max. Outreach: 12.05m m · Max. Lift Capacity: 300 kg kg · Max. Gradeability: 45% (24°) %
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XGS18K mobile elevating platform is a kind of straight-arm mobile elevating platform with compact layout, precise design, powerful drive and easy operation. It is easy to operate, safe, reliable, accurate and efficient, and can widely meet the needs of users in various industries such as building construction, steel structure, petrochemical, venues and rental.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. Working Height | 18.28m | m |
| Max. Outreach | 12.05m | m |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. Lift Capacity | 300 kg | kg |
| Max. Gradeability | 45% (24°) | % |
| Total Weight | 8000kg | kg |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | Yuchai YCF3050-T423 | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Brochure
Brochure
File size: 9.0 MiB
Linked by the official product page
