XCMG / XGF1520
XCMG equipment / Product profile

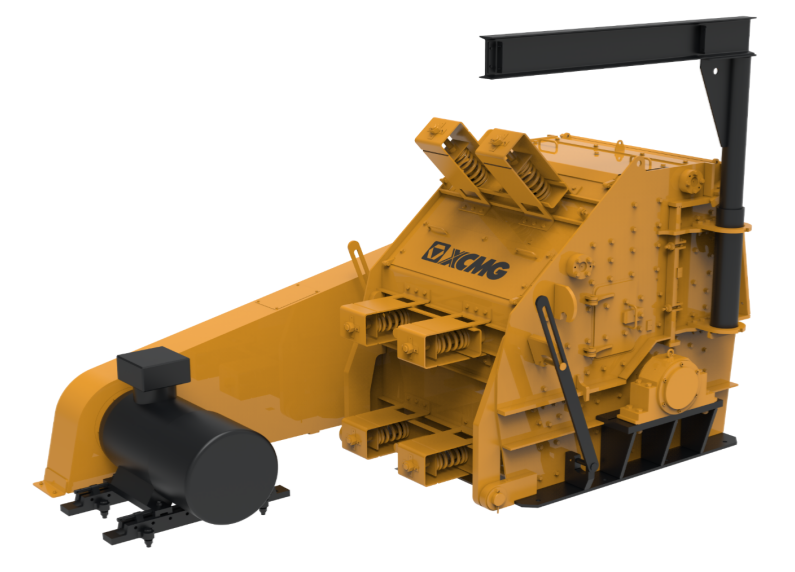

Impact Crusher
XGF1520
XCMG XGF1520 — Impact Crusher. Review published parameters and request the configuration for your destination market from XEMACH.
Productivity350~600 t/h
Overall weight38.5 t
Motor power2×250 kW
Hardness of crushed materials≤150 MPa
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XGF1520 — Impact Crusher. Review published parameters and request the configuration for your destination market from XEMACH.
Productivity: 350~600 t/h · Overall weight: 38.5 t · Motor power: 2×250 kW · Hardness of crushed materials: ≤150 MPa
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XGF1520 impact crushing station is independently developed by XCMG based on of years of R&D experience and can be used to break natural stones with medium and soft hardness and recycle construction waste. It is characterized by stability, flexibility, efficiency and intelligence.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Hardness of crushed materials | ≤150 | MPa |
| Max. feedstock size | 500 | mm |
| Range of discharge opening | 0~40(70%-85%) | mm |
| Productivity | 350~600 | t/h |
| Driving type | Motor + narrow V belt | — |
| Number of narrow V-belts | 20 | — |
| Overall weight | 38.5 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Feed inlet dimensions | 2040 × 1130 | mm |
| Overall dimensions | 5000 × 3600 × 3090 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Motor power | 2×250 | kW |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_XGF1520_EN_20260105
File size: 14.2 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
