XCMG / XGE0508
XCMG equipment / Product profile

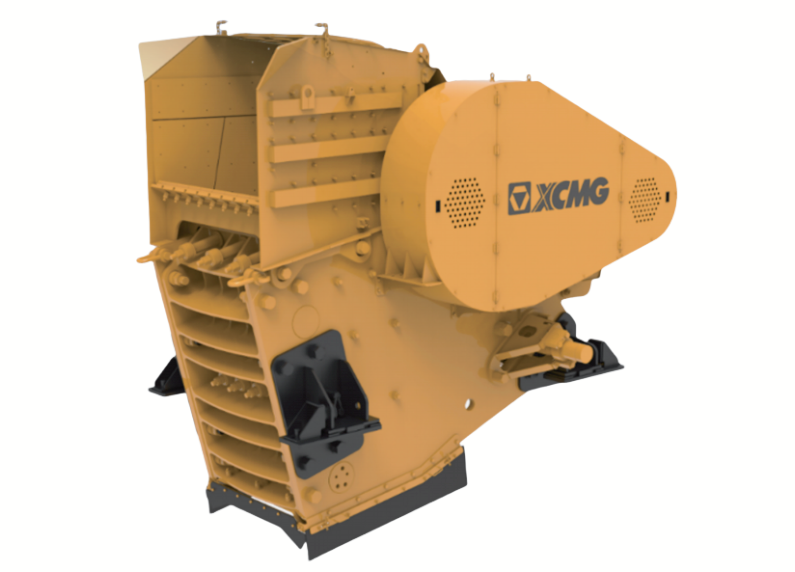

Jaw Crusher
XGE0508
XCMG XGE0508 — Jaw Crusher. Review published parameters and request the configuration for your destination market from XEMACH.
Productivity55~335 t/h
Overall weight9940 kg
Motor power90 kW
Feed inlet dimensions510 × 800 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XGE0508 — Jaw Crusher. Review published parameters and request the configuration for your destination market from XEMACH.
Productivity: 55~335 t/h · Overall weight: 9940 kg · Motor power: 90 kW · Feed inlet dimensions: 510 × 800 mm
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XGE0508 is a high-efficiency jaw crusher, which is independently developed by XCMG based on years of experience in research and development of machinery. It has reliable performances and a pleasant appearance, and has reached world advanced level. It is widely used for coarse crushing various ores and natural stones.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Feed inlet dimensions | 510 × 800 | mm |
| Overall dimensions / L×W×H | 2547 × 2200 × 2144 | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Range of discharge opening | 40~175 | mm |
| Productivity | 55~335 | t/h |
| Main shaft speed | 350 | r/min |
| Overall weight | 9940 | kg |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Motor power | 90 | kW |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_XGE0508_EN_20260105
File size: 14.4 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
